The three-phase intelligent current and voltmeter is designed for the power intelligent monitoring needs of power systems, industrial and mining enterprises, public facilities, smart buildings, etc. It can measure all common power parameters in the three-phase power grid with high precision, such as three-phase voltage, three-phase current, Frequency, with communication interface, analog output, relay output control and other functions.

The three-phase intelligent current and voltmeter has a variety of extended function input and output methods to choose from: 1 communication interface, 3 analog output, 4 relay output, local or remote switch signal monitoring and control output function ("remote signal ”And “remote control” function), 4-way switch monitoring function.

The three-phase intelligent current and voltmeter has an extremely high cost-performance ratio, and can directly replace conventional power transmitters, measuring indicating instruments, and related auxiliary units. As an advanced intelligent and digital power grid front-end collection component, it has been widely used Used in various control systems, SCADA systems and energy management systems, substation automation, distribution network automation, community power monitoring, industrial automation, intelligent buildings, intelligent distribution panels, switch cabinets, with easy installation, simple wiring, and convenient maintenance , The project is small, the input parameters can be set on-site programmable, and it can complete the networking of different PLC and industrial control computer communication software in the industry.


Measurement function  Remarks
Real-time measurement Three-phase voltage Basic Skills
Three-phase current
Transmission output 4-20mA/0-5V Extensions
Switch input Passive dry node AC250V5A
Relay output Remote control/alarm
communication RS485 interface M0DBUS-RTU
Display method LED digital, LCD liquid crystal display

Technical Parameter

signal input wiring Three-phase four-wire/three-phase three-wire
Voltage Range 380V/100V
overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA
Current Range 5A/1A
overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA
frequency 45~65Hz
power supply AC/DC 85~265 V, AC220V <5VA
communication Rs485 communication interface, physical layer isolation, MODBUS-RTU protocol in line with international standards, communication speed 1200-9600, verification method N81, E81, 081
Analog output 0/4~20mA or. ~5/10V transmission output Programmable setting of transmission items and corresponding values
Relay output Programmable remote control/alarm relay output capacity 5A/250VAC 5A/30VDC Programmable alarm power, switch input, analog output or remote control mode
Telemetry switch Telemetry switch input measurement, passive dry node input, programmable associated alarm output
Measurement level Current and voltage: 0.5S: Frequency: ±0.2Hz
Display method LED digital, LCD liquid crystal display
environment Working temperature: -10~+55P Storage temperature: -20~+75°C Relative humidity: <80XRH
Safety Insulation: signal, power supply, output terminal to shell resistance>5MQ Withstand voltage: signal input, power supply, output to shell>AC2KV

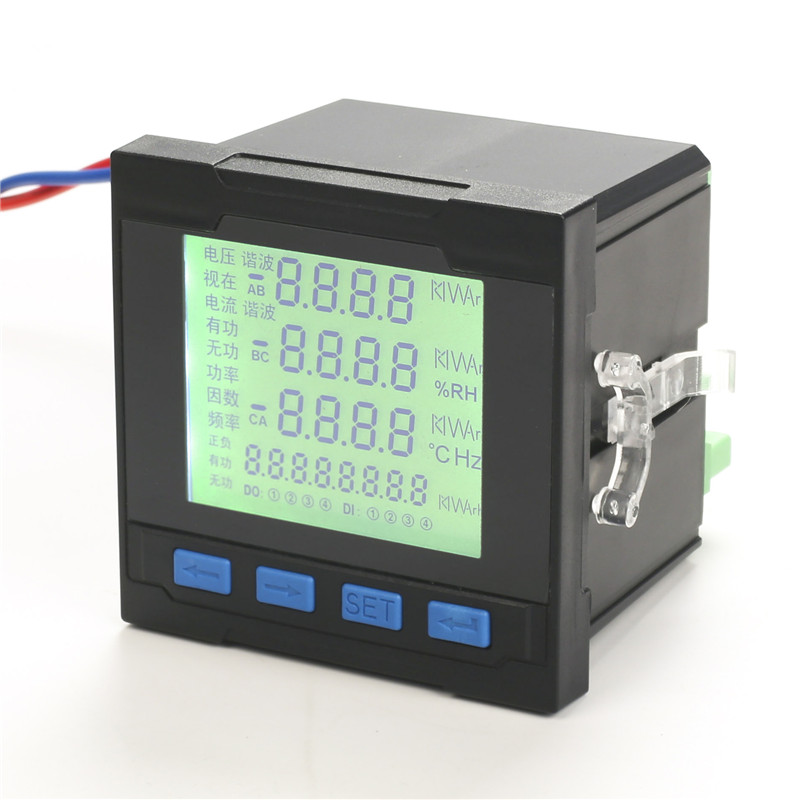

Three-phase multi-function meter 72

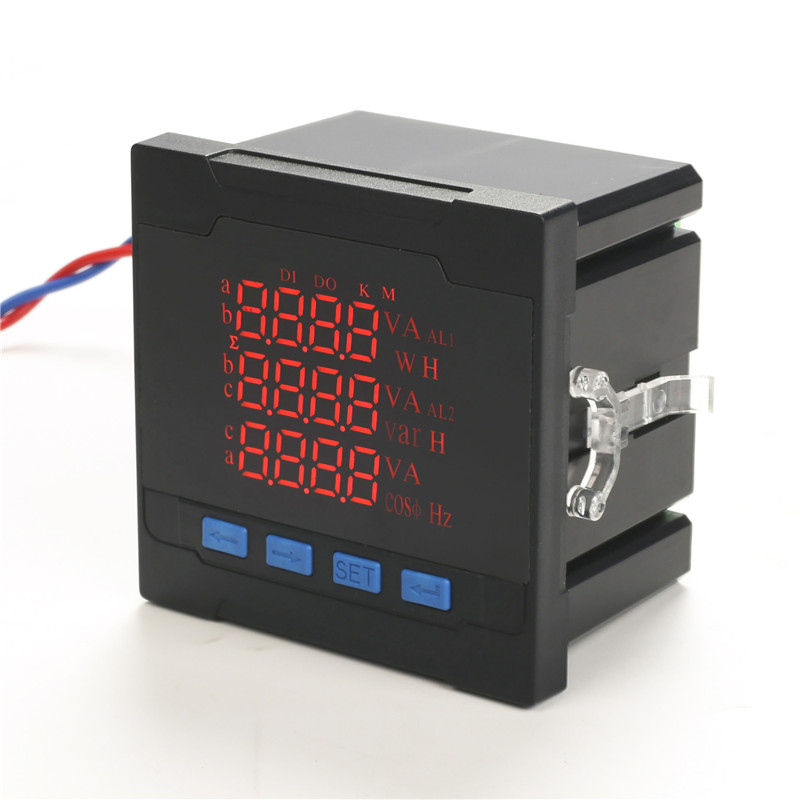

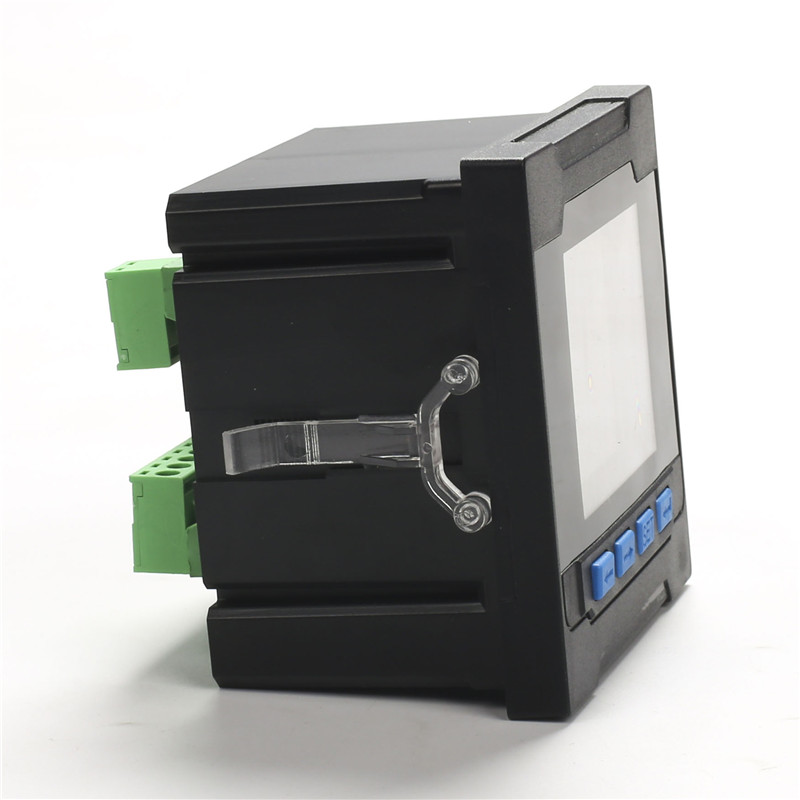

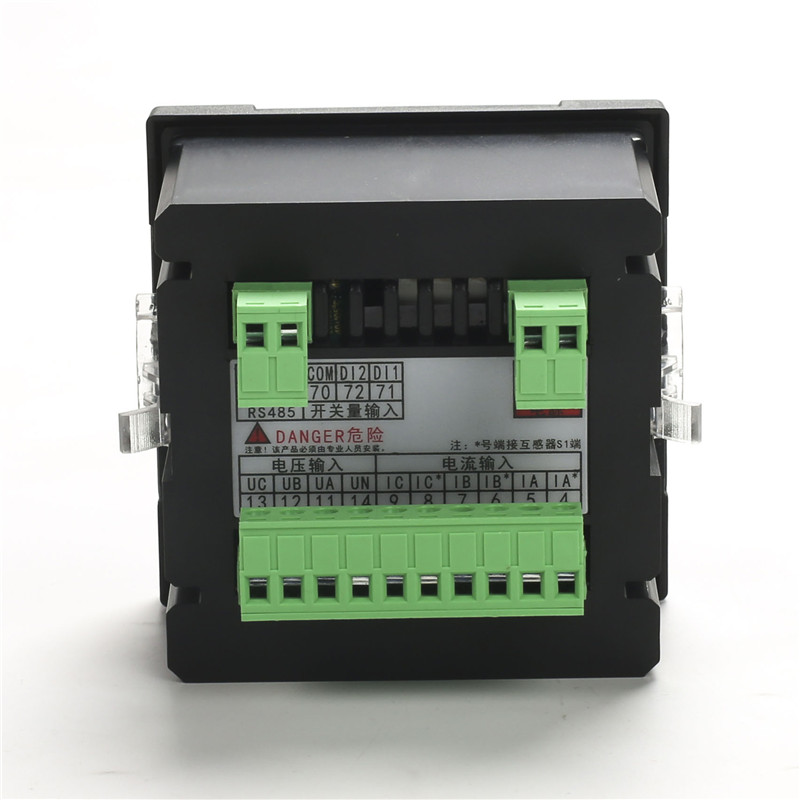

Three-phase multi-function meter 80

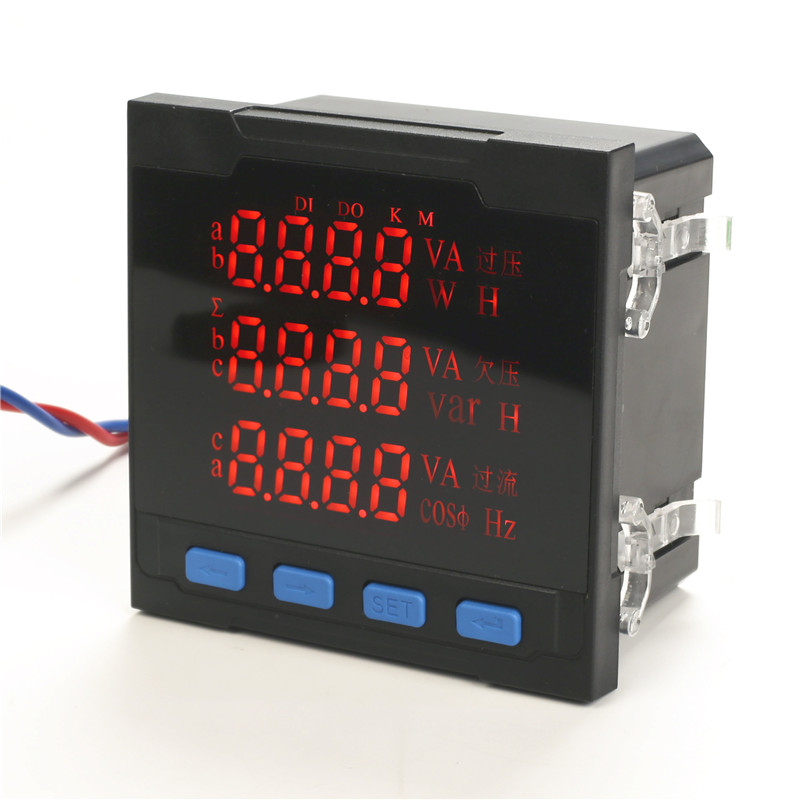

Three-phase multi-function meter 96

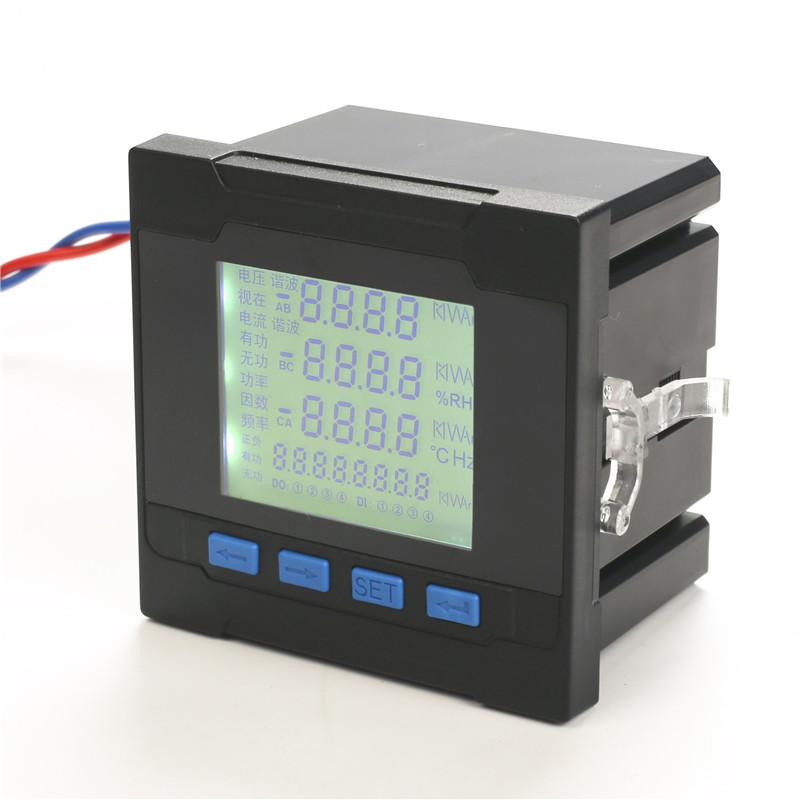

Three-phase multi-function meter 72-LCD

Three-phase multi-function meter 80-LCD

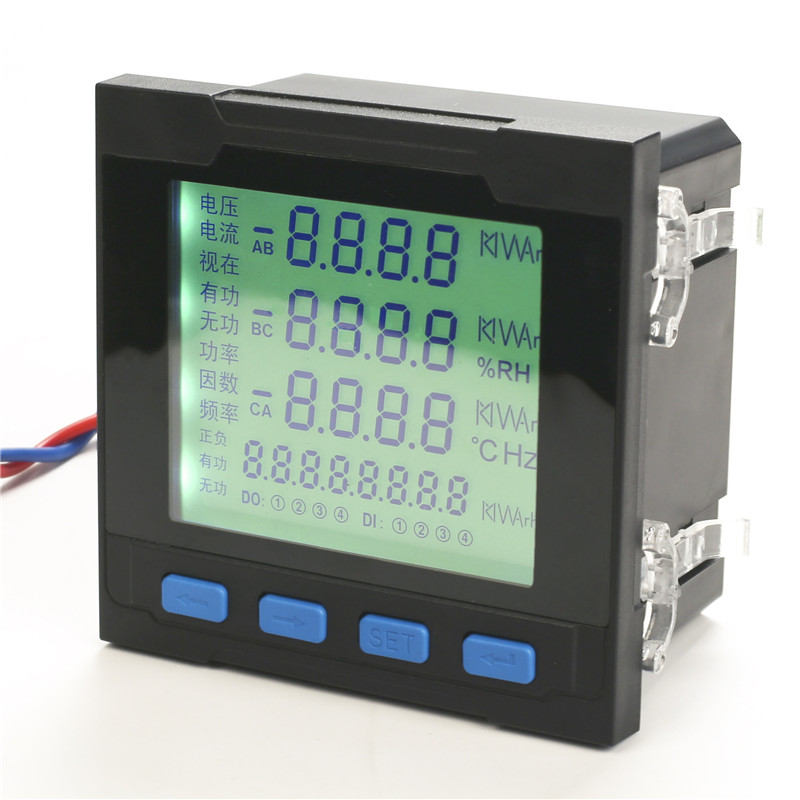

Three-phase multi-function meter 96-LCD
