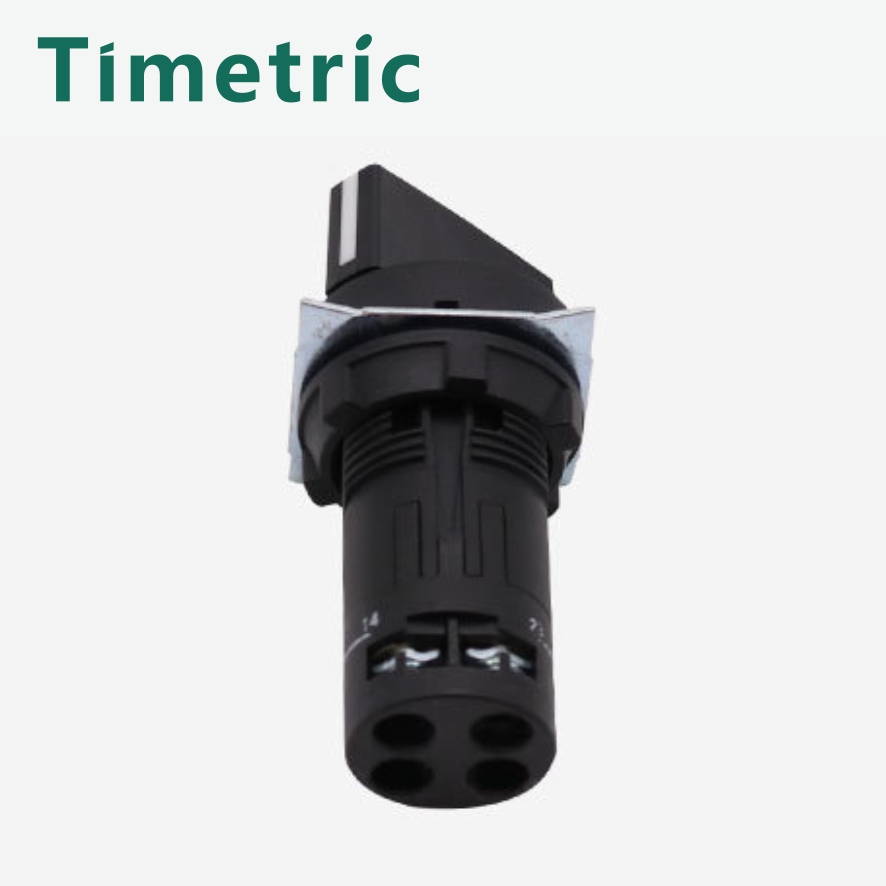

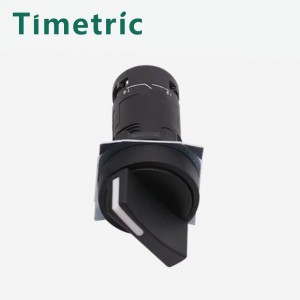

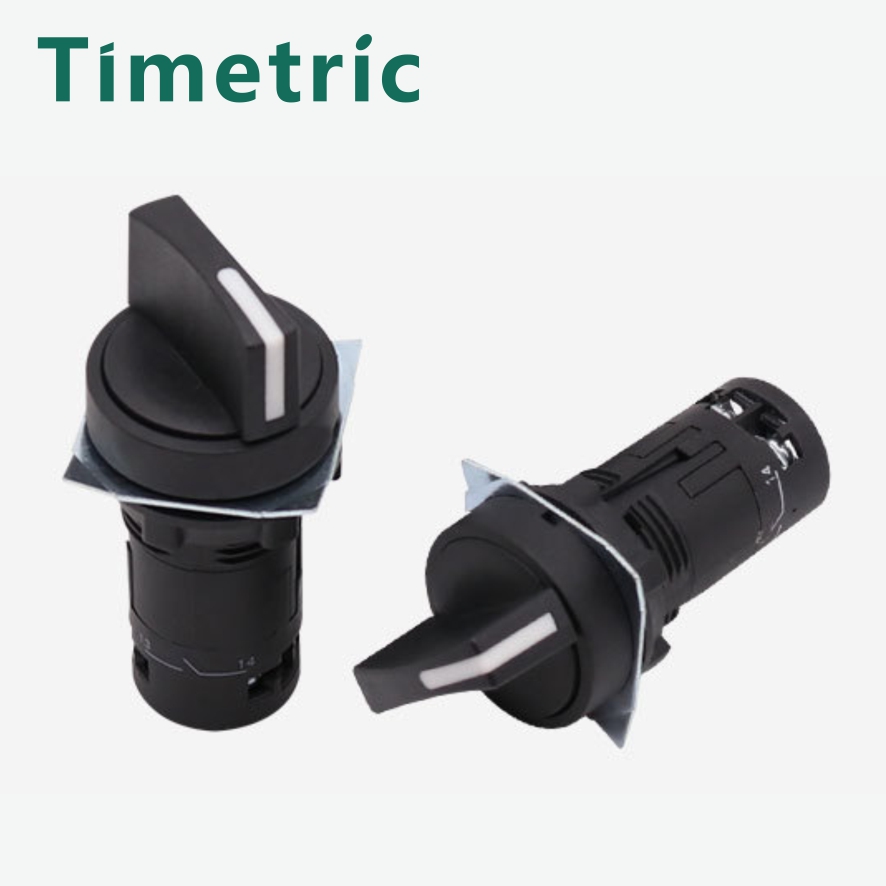

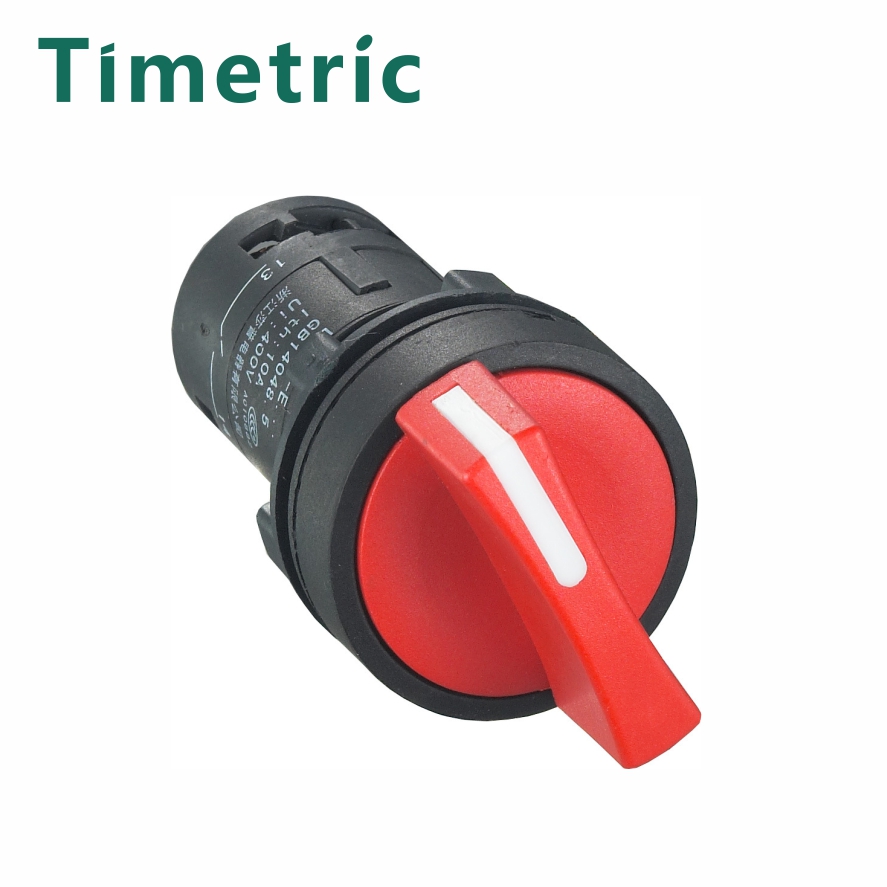

XB7 Series Knob Switches

XB7 Series Knob Switches Featured Image
  • XB7 Series Knob Switches
  • XB7 Series Knob Switches
  • XB7 Series Knob Switches

Short Description:

LA37-E1. series push button switch = XB7 series push button switch + improved design.



(1) The contact is made of silver cadmium oxide (AgCdO15) material, which has high making and breaking ability and long life.

(2) The indicator light with the lighted button adopts LED light, which has low power consumption and long life.

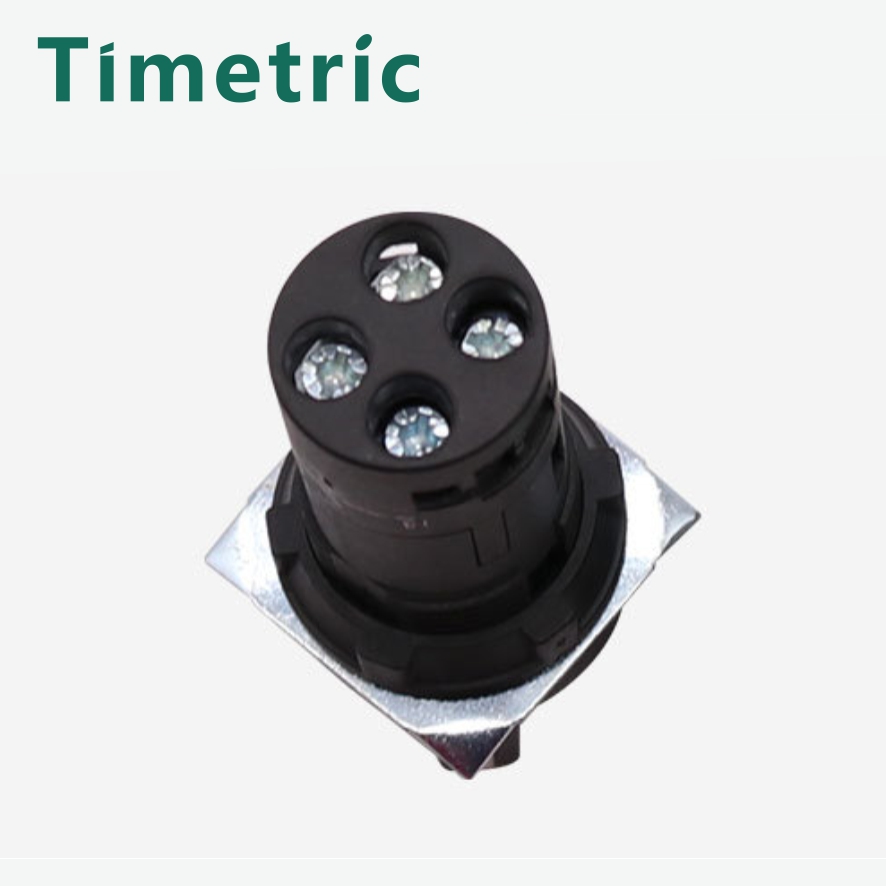

(3) Two connection methods are available: screw connection method and Faston connector connection method.

Screw connection method: simple and convenient.

Faston connector wiring method: high connection reliability, especially suitable for use in places with severe vibration, such as: automobiles, lawn mowers, construction machinery, etc.

undefined EC2808-270

(4) It can be installed on the mounting plate with plate thickness = 10mm, which is the best among similar products.

(5) The integrated structure design is very convenient for installation, and at the same time, it can avoid product quality problems caused by improper installation.

(6) The knob switch and the key knob switch have the function of preventing following rotation, which can avoid the phenomenon that the body follows the handle rotation during use.


Product Detail

Product Tags

6 54

Environment “TH”
Protective treatment Standard version
Am bient air temperature around the device Storage °C -40…+ 70
Operation °C -25…+70
Electric shock protection Conforming to IEC 60536 Class II
Degree of protection Conforming to IEC 60529 IP 54 front face
IP 20 rear face (protection against direct contact)
Conforming to NEMA NEMA type 12
Mounting Conforming to IEC/EN 60947-5-1 Finished fixing hole: 22.5 mm recommended (22.3 +0.4/ 0)
Fixing centres: 30x 40 mm min. (unless otherwise indicated)
Mounting panel thickness: metal: 1 to6 mm, double insulated: 2 to 6 mm
Recommended tightening torque of fixing nut: 2 N.m. max.: 3 N.m
Cabling capacity Conforming to EN60947-1 Screw clamp terminal connections:
□ min.: 1 x 0.34 mm2 without cable end
□ max.: 2 x 1.5 mm2 with cable end
Forked “IT tag connectors: 2 max., fitted head to tail
Fork width 5.7 to 6.5 mm for M3 screw
Screw clamp tightening torque N.m 0.8 (nominal recommended)
1.2 (max)
Screw heads compatible with Pozidriv or Phillips or JIS screwdrivers (size 1) and flat screwdrivers (4 and 5.5 mm)
Mechanical durability (in operating cycles) Pushbuttons: 1 000 000
Illuminated pushbuttons, spring return: 300 000
Illuminated pushbuttons, push-push: 300 000
Selector switches: 300 000
Key switches: 300 000
Emergency stop pushbuttons: 10 000
Vibration resistance Conforming to IEC 60068-2-6 5gn(frequency 2at500 Hz)
Electric shock resistance Conforming to IEC 60068-2-27 50 gn (half sine wave for 11 ms) Emergency stop: 10 gn (half sine wave for 11 ms)
Conforming to standards Generic standards IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 UL508, CSAC22 n°14, JIS C 4520 (pending)
Terminal referencing Conforming to EN 50005 and EN 50013 Conforming
Contact block characteristics
Type of contact N/C or N/O Slow break
Positive operation Conforming to IEC/EN 60947-5-1 appendix K All functions incorporating an N/C contact have positive opening operation
Short-circuit protection Conforming to IEC/EN 60947-5-1 A 4 (gG cartridge fuse conforming to IEC 269-1)
Rated insulation voltage Conforming to IEC/EN 60947-1 V Ui = 250 (degree of pollution 3)
Rated impulse withstand voltage Conforming to IEC/EN 60947-1 kV Uimp = 4
Rated operational characteristics (conforming to IEC/EN 60947-5-1) a.c. supply:
utilisation category AC14, D300		 Ue = 240 Vand le = 3A, Ue = 24Vand le = 5A
Electrical reliability Failure rate
conforming to IEC 60947-5-4		 At 17 V and 5 mA:λ≤106
Single light block characteristics
Type of bulb LED
Voltage limits For rated voltage V 24V~:19.2…30…; 21.6…26.4〜
110V〜: 100…132~
220V 〜:195…264〜
Current consumption Applicable to all colours mA 18
(all types, all voltages)
Service life At rated voltage and at an ambient temperature of 25 °C H 80000
Electromagnetic emissions Conforming to IEC 55011 Class B
