24KV Bushing Indoor Insulating Sheet For Switchgear

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Type: Insulator

Material: PVC,epoxy resin

Rated Voltage: 12kv

Application: High Voltage,High voltage electrical distribution

Color: red

Product Detail

Product Tags

24kv Bushing Indoor Insulating Sheet for Switchgear


1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name: TG3-24/162*162*280 Bushing
Brand: Timetric
Application: High Voltage / Switchgear
Operation condition indoor installation
Color: brown, red
Material epoxy resin
Product Certification: CE and ISO 9001:2000
Rated voltage: 24kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

24kv Bushing Indoor Insulating Sheet for Switchgear

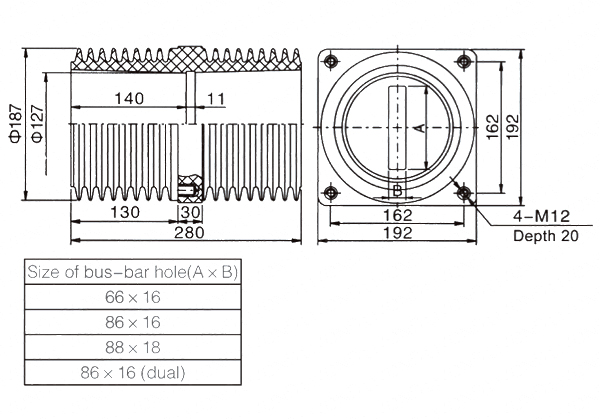

24KV Bushing LYC150 Indoor Insulating Sheet For Switchgear 001

24kv Bushing Indoor Insulating Sheet for Switchgear

Advanced Technology

1. Adopt epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine, electrical performance fit.

2. Adopt high toughness epoxy resin manufacture, machine capability excellent. And adopts low reaction activity recipe system, material solidifies slow, product body stress low. Maximum field enhances products machine capability.

3. Add activated silica slight powder, make further improvement on enhance epoxy resins machine capability, much ensures insulate long-term keep good electric insulate performance under wet work environment.

4. Add organic colors, increase product’s luster, not reduce products insulate performance.
