Big Contact Box With Epoxy Resin 40.5KV For Circuit Breaker

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Material: Epoxy resin

Application: High Voltage

Rated Voltage: 40.5kv

Type: Insulator

Color: Red/ Brown

Warranty: 1 Year

Product Detail

Product Tags

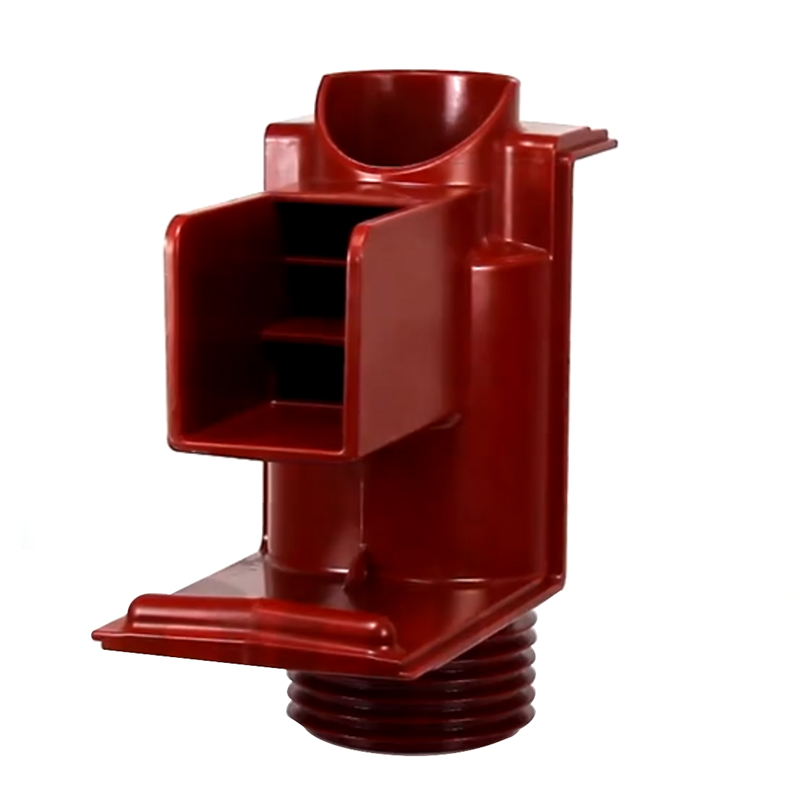

Big Contact Box with Epoxy Resin 40.5KV for Circuit Breaker


1. The product adopts epoxy resin material

2. It gains high level of insulation, intensity and stability.

3. It provides different specifications based on the size of electric current for the user’s choice

4. The contact box is formed by epoxy with APG Technology


Model Name: CTH11-40.5KV Contact Box
Brand: Timetric
Type: Contact Box
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE and ISO 9001:2000
Rated voltage: 40.5 KV
MOQ: 1pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

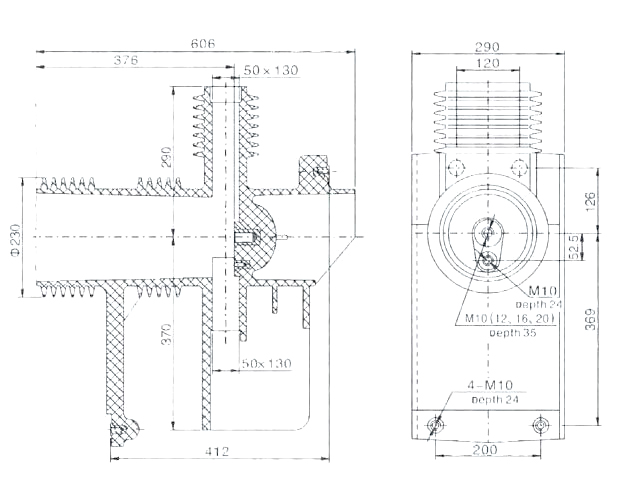

LY113 High voltage epoxy resin switch box bushing

Big Contact Box with Epoxy Resin 40.5KV for Circuit Breaker LY113

Applicable Work Environment:

1. Indoor installation.2. Altitude: ≤1000m.3. Ambient temperature: +40°C~5°C.4. The relative humidity shall not be more than 85%at+20°C ambient temperature.5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

Our Advantages:

1, We are specialized in sales of high-voltage electrical insulation products.

2, Strict quality control and excellent after-sales service.

3. Experienced staffs answer all of your question in fluent English.

3. Customized design is available. OME&ODM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
