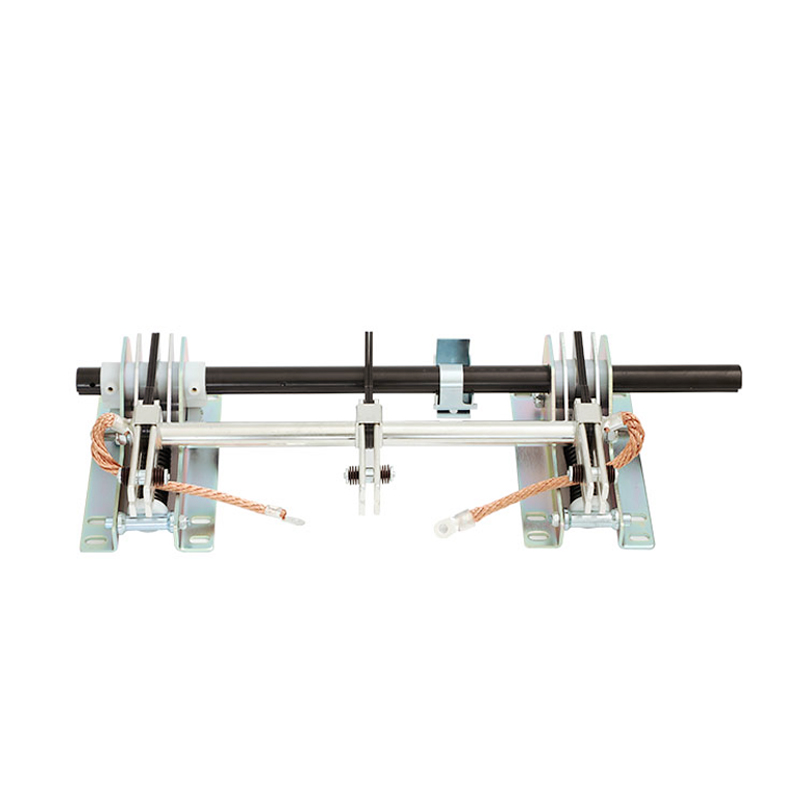

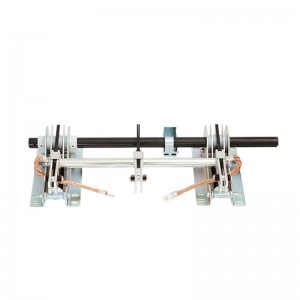

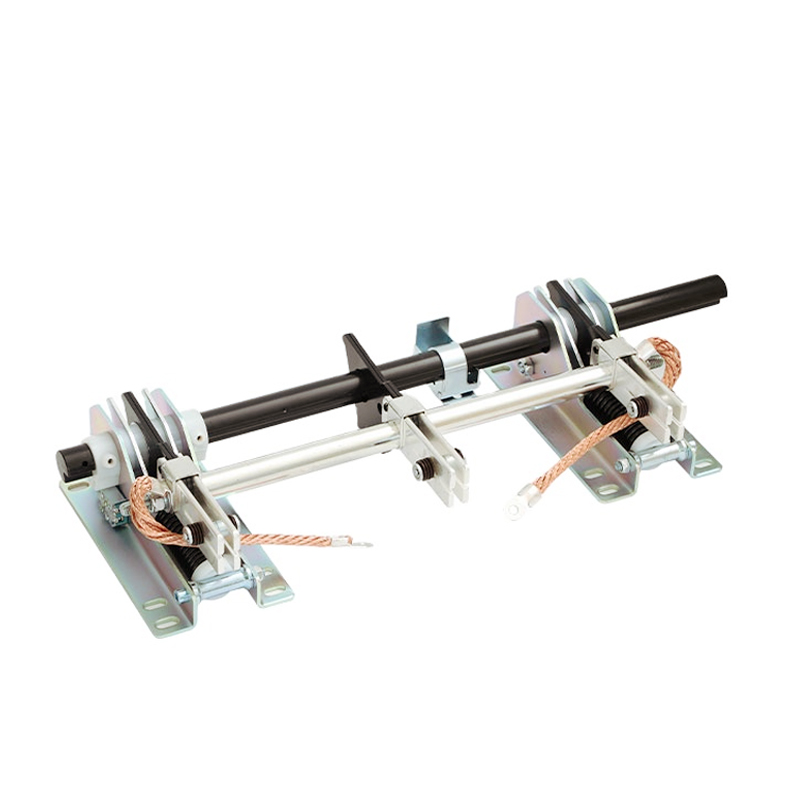

LYE101 JN15A-12/31.5 Indoor AC High Voltage Grounding Switch
Summary:
Grounding switches use resin insulators, on which live parts, made of silver-plated electrolytic copper (99.9%), are placed. The blades are directly connected to the drive shaft. Contact elements are overdimensioned according to the requirements in order to guarantee, together with a high contact pressure between blades and contacts, a reduced ohmic resistance at the contact surface and a minimum metal wear-off during the life of the grounding switch, with the necessary robustness to withstand thermal and mechanical stresses under short-circuit conditions.
JN15A-12/31.5 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance.After comprehensive evaluation,it conforms to GB1985 and IEC129 standard ,applies to power system of 3-12kV and three-phase AC 50Hz.It owns short-circuit making capacity to protect other electric equipment not being damaged.Can be used with various high voltage switchgear,also play a protective role in the high-voltage electrical equipment overhaul.
Ambient condition:
1.Altitude: less than 1000M
2.Ambient temperature: -10℃ to 40℃
3.Earthquake intensity: no more than 8 degree
4.Pollution: II
5.Relative humidity: Daily average less than 95%. Monthly average less than 90%
Item | Unit | Data | ||
Rated voltage | kV | 12 | ||
Rated short-time withstand current | kA | 31.5 | ||
Rated short-circuit duration | s | 4 | ||
Rated short-circuit making current | kA | 80 | ||
Rated peak withstand current | kA | 80 | ||
Rated insulation level | PF withstand voltage (1 min) | kV | Phase to earthPhase to phase | 42 |
Lightning impulse withstandvoltage | 75 | |||
Mechanical endurance | Time | 2000 |

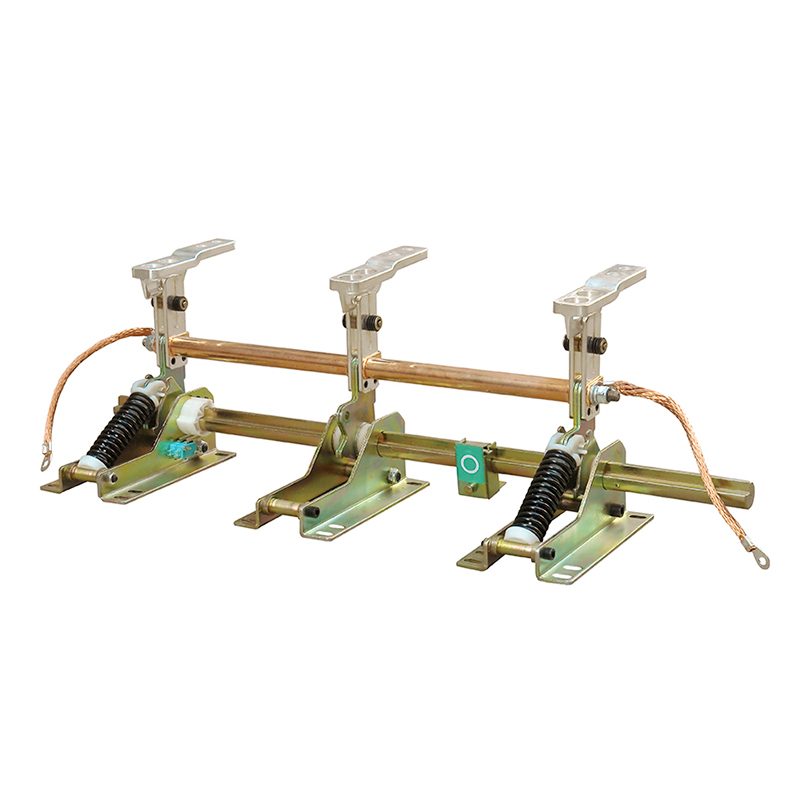

EK6-12/31.5 earthing switch(ES-10/31.5)Outline and installation dimension
Hole location diagram |
Hole location diagram |
Unit: (mm)
Specification | E | F | G | H | D | C |
EK6-12/31.5-165 | 165 | 75 | 160 | 565 | 426 | |
EK6-12/31.5-180 | 180 | 75 | 160 | 595 | 456 | |
EK6-12/31.5-200 | 200 | 75 | 160 | 635 | 496 | |
EK6-12/31.5-210 | 210 | 75 | 160 | 655 | 516 | |
EK6-12/31.5-220 | 220 | 75 | 160 | 675 | 536 | |
EK6-12/31.5-230 | 230 | 75 | 160 | 695 | 556 | 96 |
EK6-12/31.5-250 | 250 | 75 | 160 | 735 | 596 | 96 |
EK6-12/31.5-275 | 275 | 75 | 185 | 810 | 646 | 96 |
Item | Item | data | |
Rated voltoge | KV | 12 | |
Rated short time withstand current | KA | 31.5 | |
Rated short circuit withstand fime | S | 4 | |
Rated short circuit making current | KA | 80 | |
Rated peak withstand current | KA | 80 | |
Rated insulation leve | 1 min power frequency withstand voltoge | KV | 42 |
Lightning impulse withstand voltage | 75 | ||
Mechanism life | time | 2000 |
