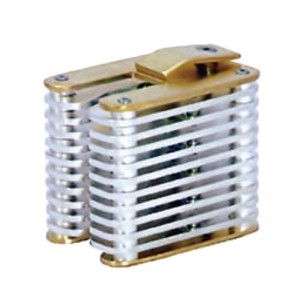

1000A Spring Flat Contact For VCB

Short Description:


Usage:Vacuum Circuit Breaker

Contact blades:20pcs

Contact plate thickness:10mm

Rated current of tulip contact: 1000A

Tulip contact used in circuit breakers

Product Detail

Product Tags

1000A spring flat contact for VCB

1.rated current of tulip contact: 1000A

2.material: copper plated with silver 3.tulip contact used in circuit breakers

.Made of higher 99.9% pure T2 copper tube, customize the thickness of silver coating 1- High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy; 2- 2.85mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.  3- Can customize specific high thickness silver coating, gurantee the thickness of silver coating, high abrasion resistance; 4- Discoloring proof treatment, avoid the dropping caused by silver coating oxidation; 5- We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements

Rated current 1000A
Contact blade 20pcs
Contact plate thickness 10mm
Insertion depth 34±2
Delivery time 15days
The minimum quantity 10pcs
payment terms T/T, L/C,Western Union

Main technical parameter

Model No. Specification Product Name Contact Quantity Contact Plate Thickness Insert Depth
VACD301 GC8-630A Spring type flat contact 12 pieces 10mm 34±2
VACD302 GC8-1000A Spring type flat contact 20 pieces 10mm 34±2
VACD303 GC8-1250A Spring type flat contact 24 pieces 10mm 34±2
VACD304 GC8-1600A Spring type flat contact 32 pieces 10mm 34±2

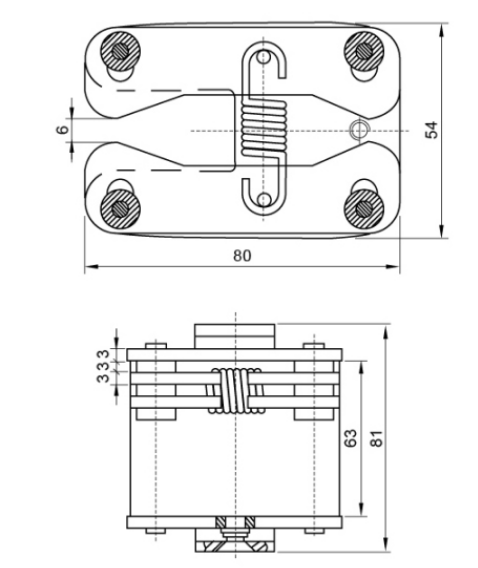

Outline and installation dimension

1000A Spring Flat Contact For VCB 001

LYA302 GC8 1000A spring flat contact for VCB

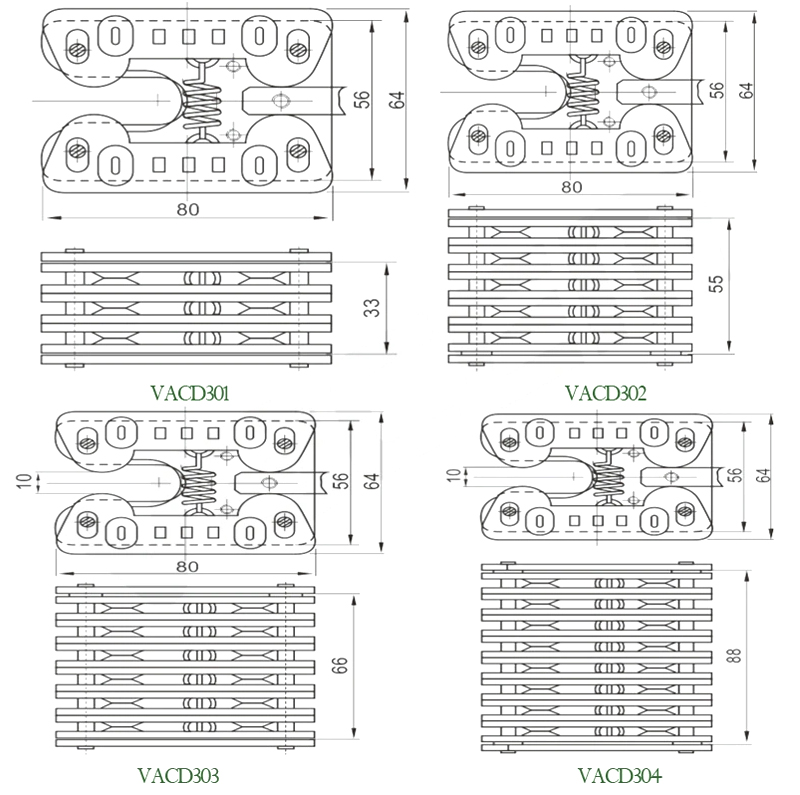

1000A VCB Extension spring type duckbill flat contact blade contacts electric jaw contact 001

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and flat contact for VCB . 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

We will give you best quality and price!
