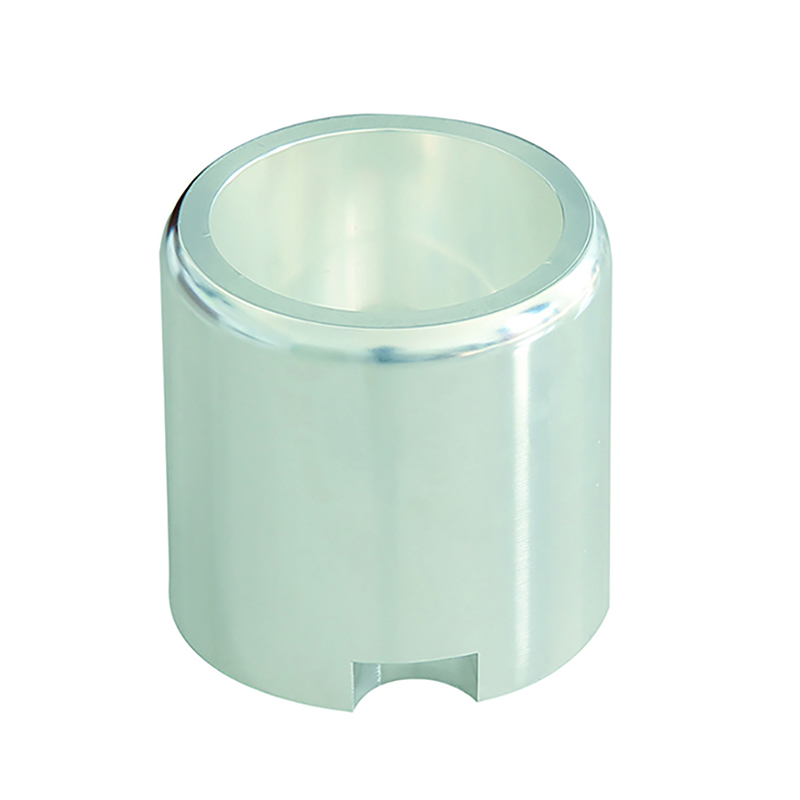

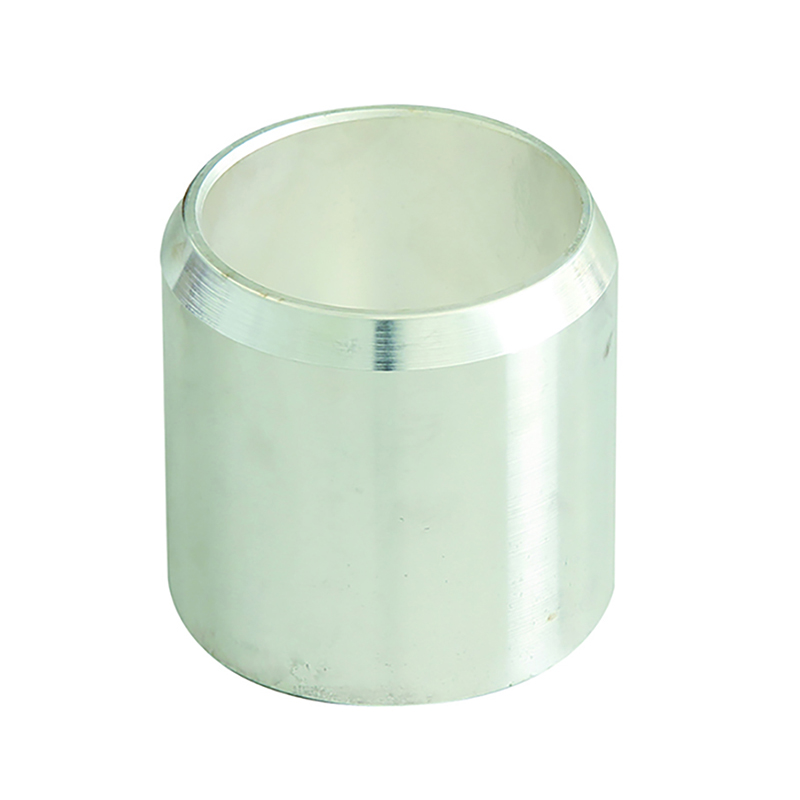

630A 1250A 1600A 2000A 2500A 3150A Fixed Contact Static Contact For Vacuum circuit breaker

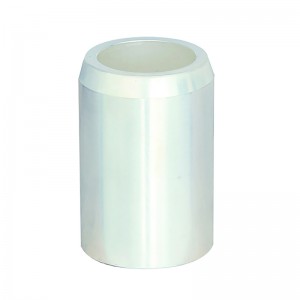

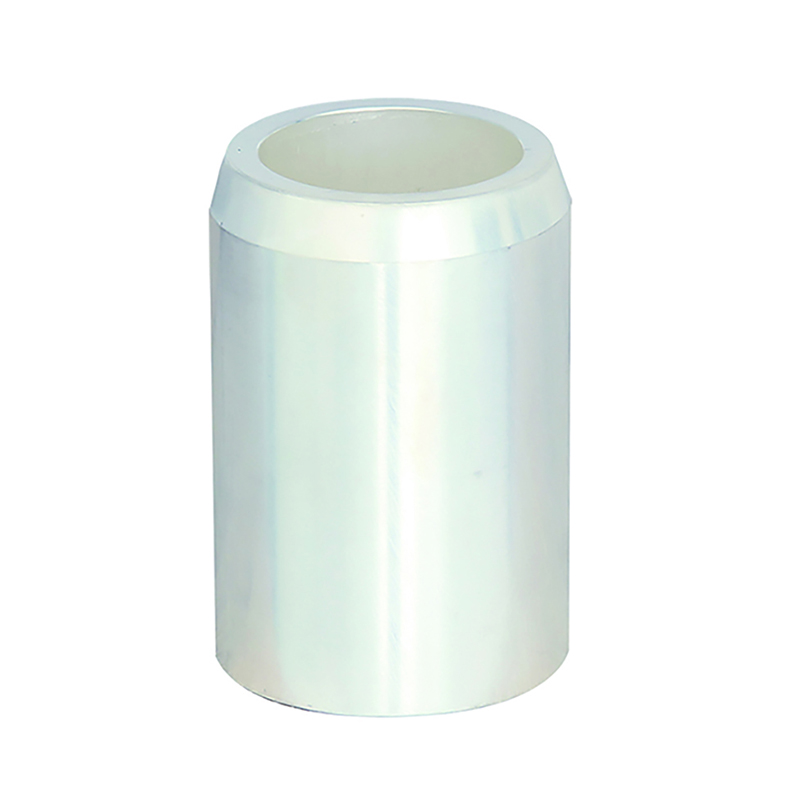

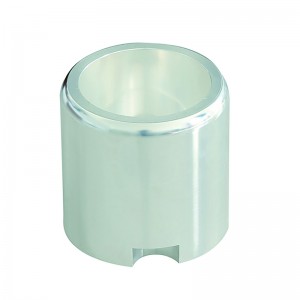

1250A fixed contact for vacuum circuit breaker
| Rated current | 1250A |
| Material | T2 red copper |
| Application | vacuum circuit breaker |
| The minimum quantity | 10pcs |
| Payment terms | T/T, L/C, Western Union |
| Product Name | Static Contact |
| Dimension | 55×82 |
| Rated Voltage | 10KV-35kv |
| Application | vacuum circuit breaker |
| Place of Origin | China |

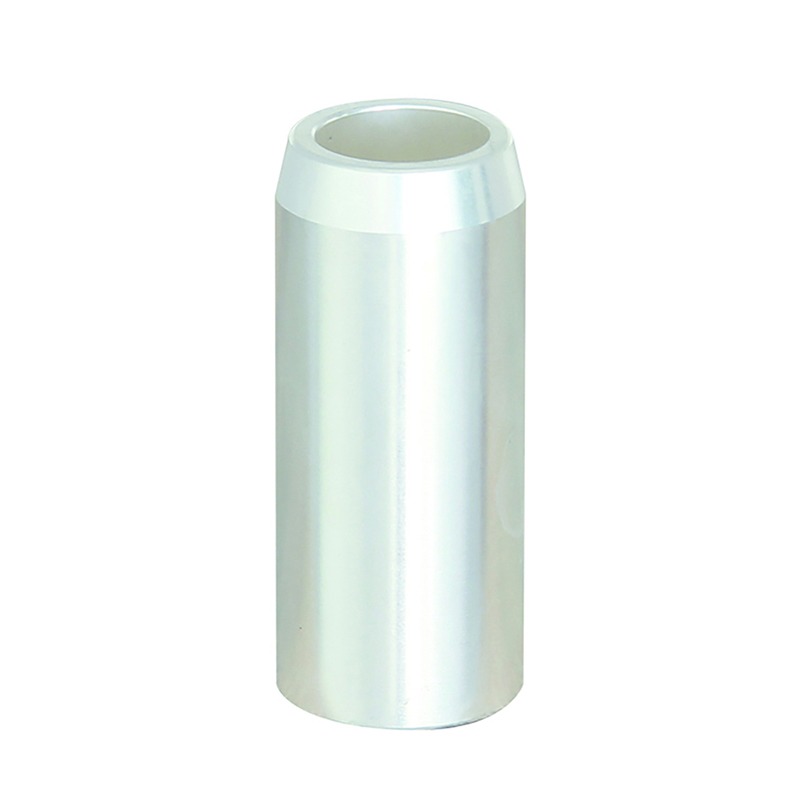

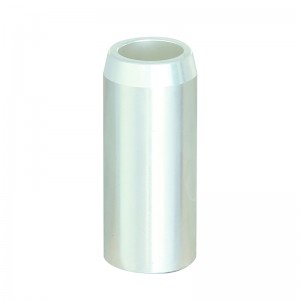

1600A VCB Contact For Vacuum Circuit breaker
Male Contact can be used for 10KV-35KV vacuum circuit breaker.
1600A VCB contacts are conductive accessories that used in high voltage vacuum circuit breaker, switchgear.
Remark: most of our parts are customized parts. Please send your drawings for checking production feasibility and price.

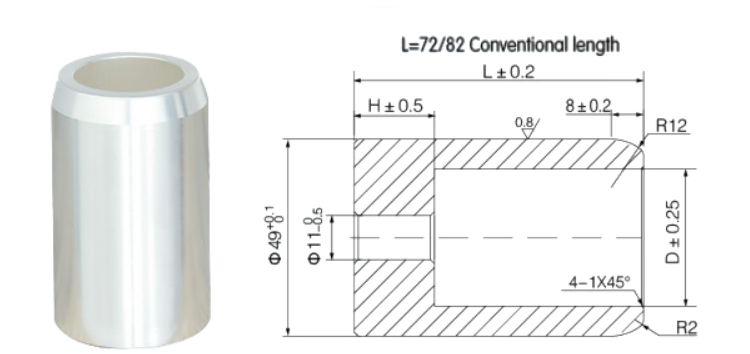

PRODUCT INFORMATION
| Conventional | economic | |
| H | 25 | 15 |
| D | Φ34 | Φ36 |
| Size | Rated current |

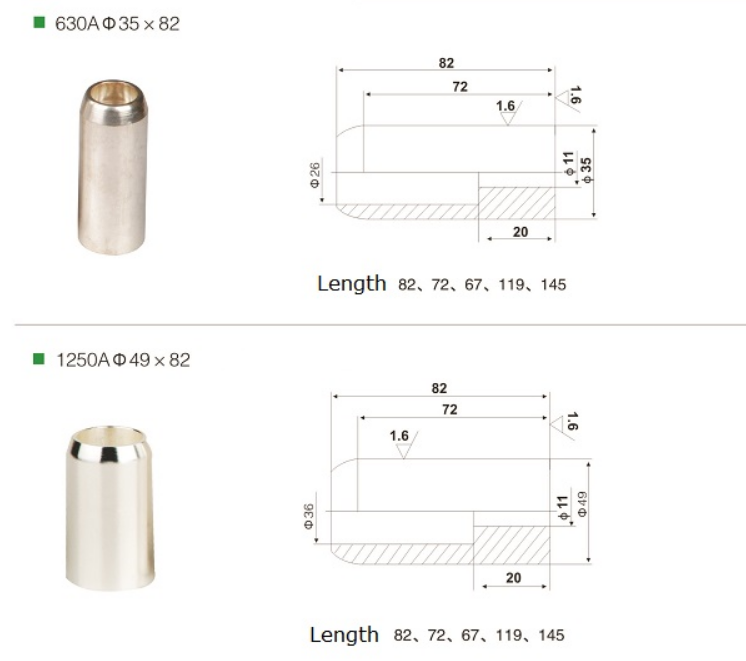

| 35*72(82) | 630A |
| 49*72(82) | 1250A |

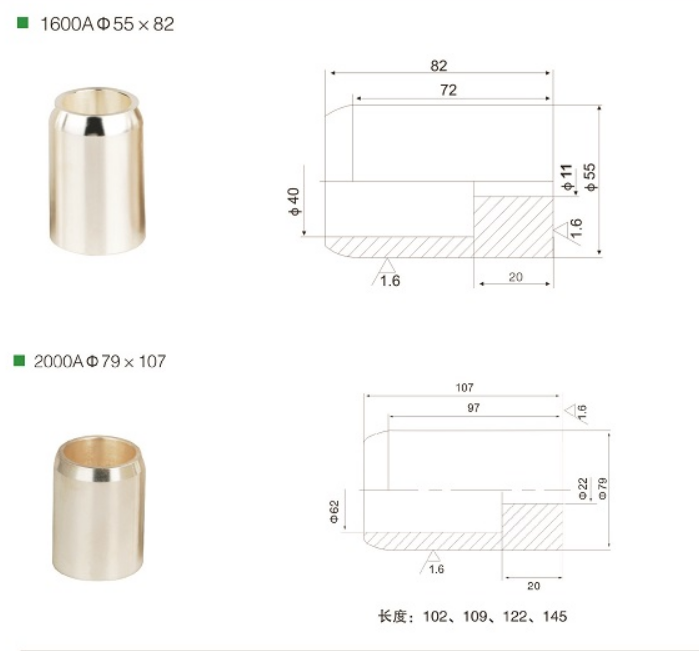

| 55*82 | 1600A |
| 79*102 | 1600A~2000A |

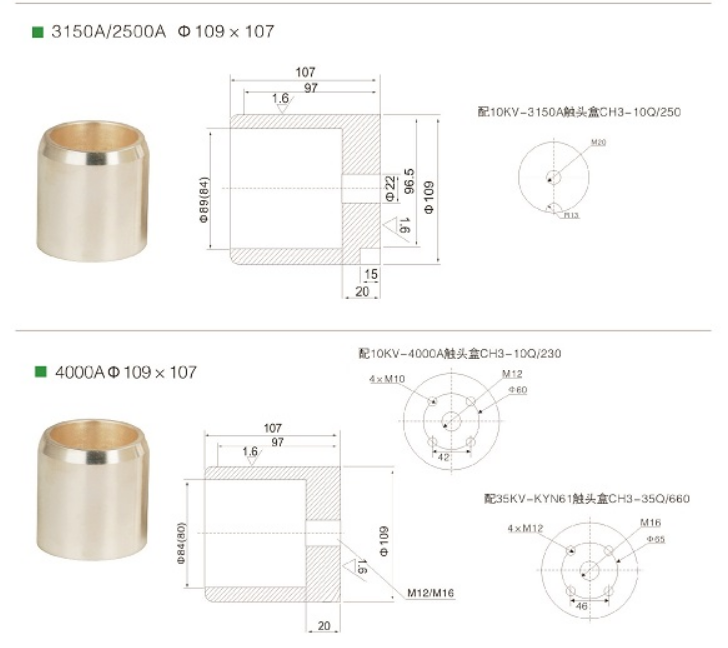

| 109*107 | 2500A~3150A |
| 109*107 | 3150A~4000A |
