630A spring flat contact for VCB


2.Usage:Vacuum Circuit Breaker

3.Contact blades:12pcs

4.rated current of tulip contact: 630A

5.material: copper plated with silver

6.tulip contact used in circuit breakers

application:high voltage

1.rated current of tulip contact: 630A

2.material: copper plated with silver 3.tulip contact used in circuit breakers

.Made of higher 99.9% pure T2 copper tube, customize the thickness of silver coating 1- High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy; 2- 2.85mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.  3- Can customize specific high thickness silver coating, gurantee the thickness of silver coating, high abrasion resistance; 4- Discoloring proof treatment, avoid the dropping caused by silver coating oxidation; 5- We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements

Rated current 630A
Contact blade 12pcs
Contact plate thickness 10mm
Insertion depth 34±2
Application Vacuum circuit breaker

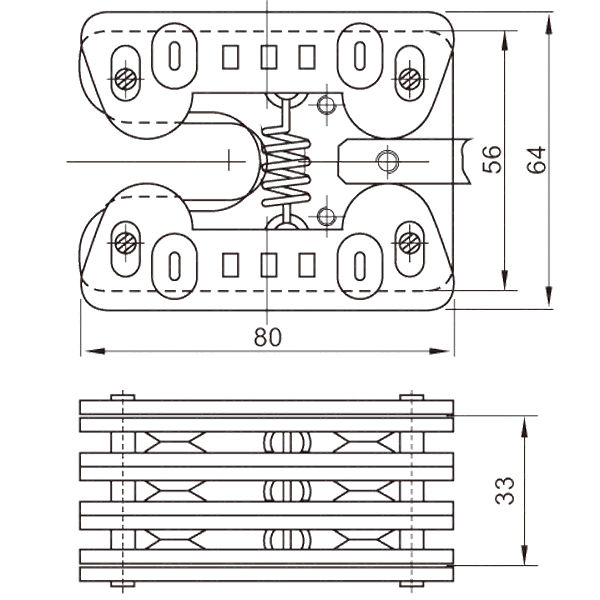

630A Spring Flat Contact for VCB 001

630A spring flat contact for VCB

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, spring flat contact ,insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A 40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

We will give you best quality and price!
