40.5KV Epoxy Resin Busbar Through Insulator Bushing

Short Description:

Applicable Industries: Machinery Repair Shops, Retail, Printing Shops, Construction works

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: 180X180

Type: Other

Material: epoxy resin, epoxy resin

Rated voltage: 10KV,24KV,35KV,40.5KV

Applicable scope: high voltage

Species: insulation

Color: Available

Certification: CCC,CE

Operating Temperature: -40°C~65°C

Product Detail

Product Tags

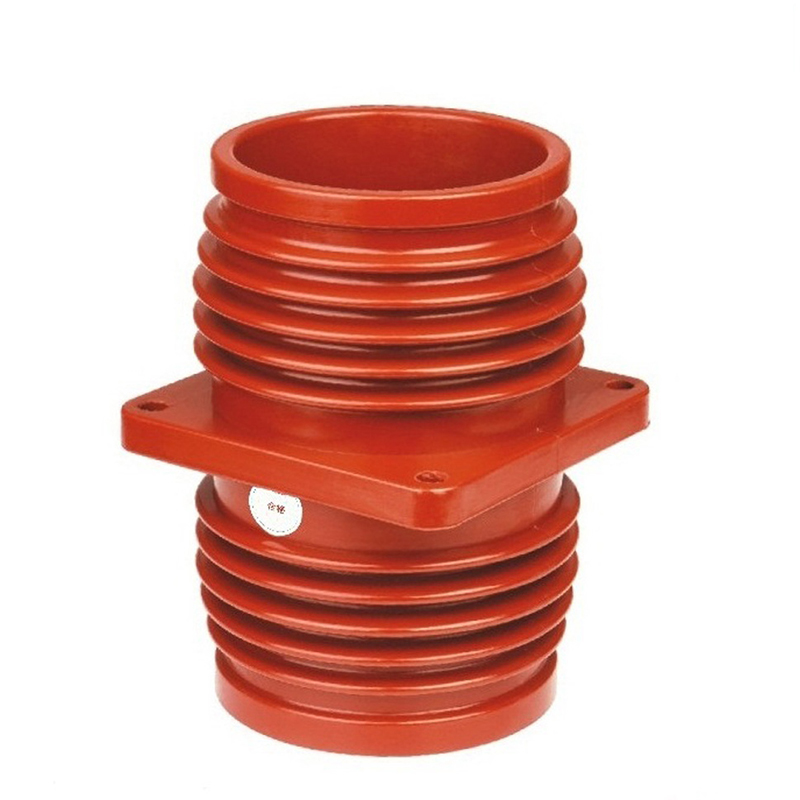

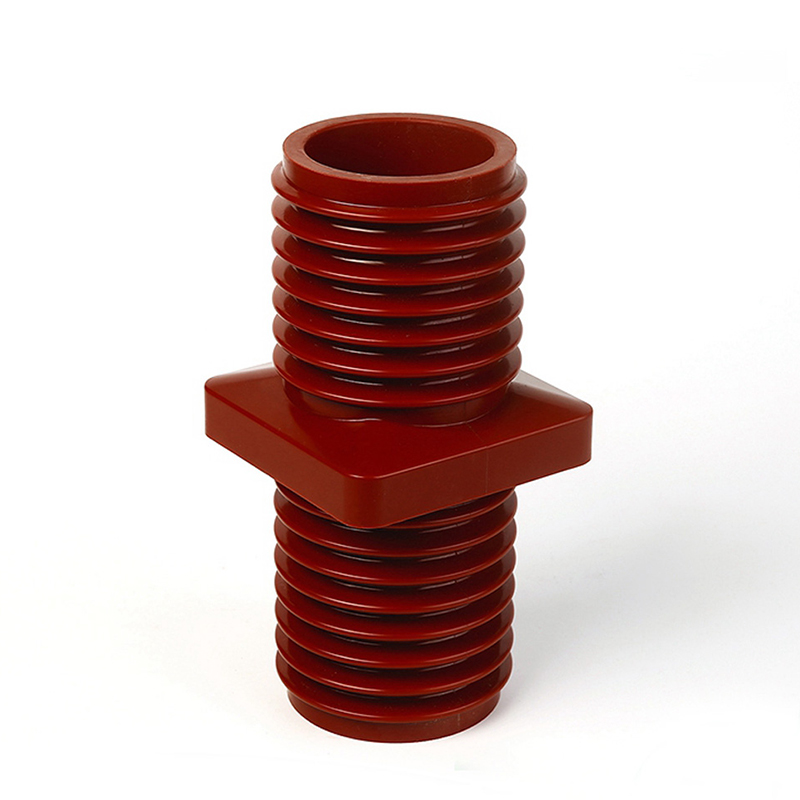

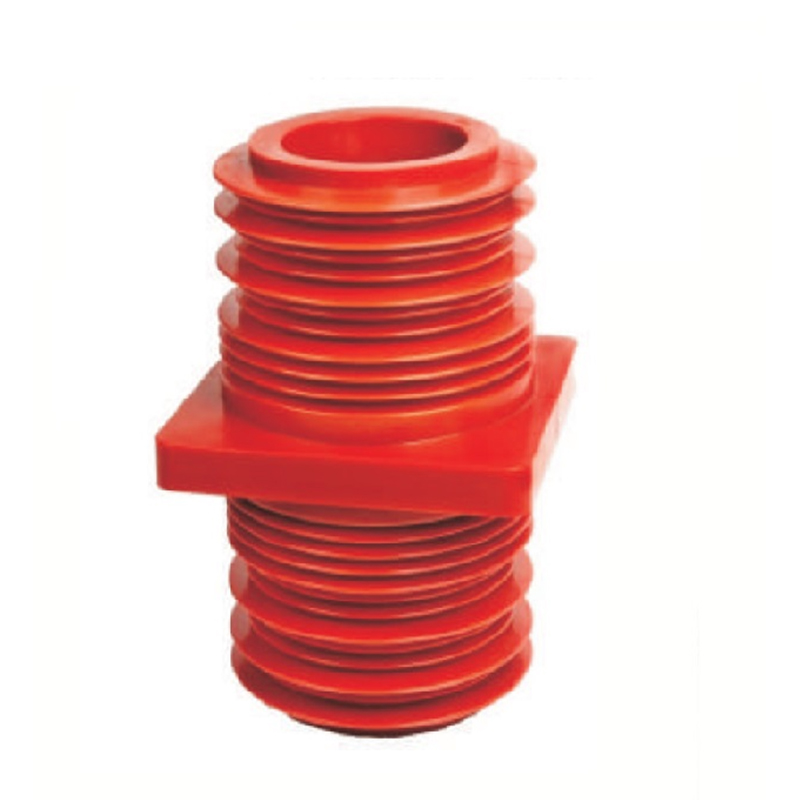

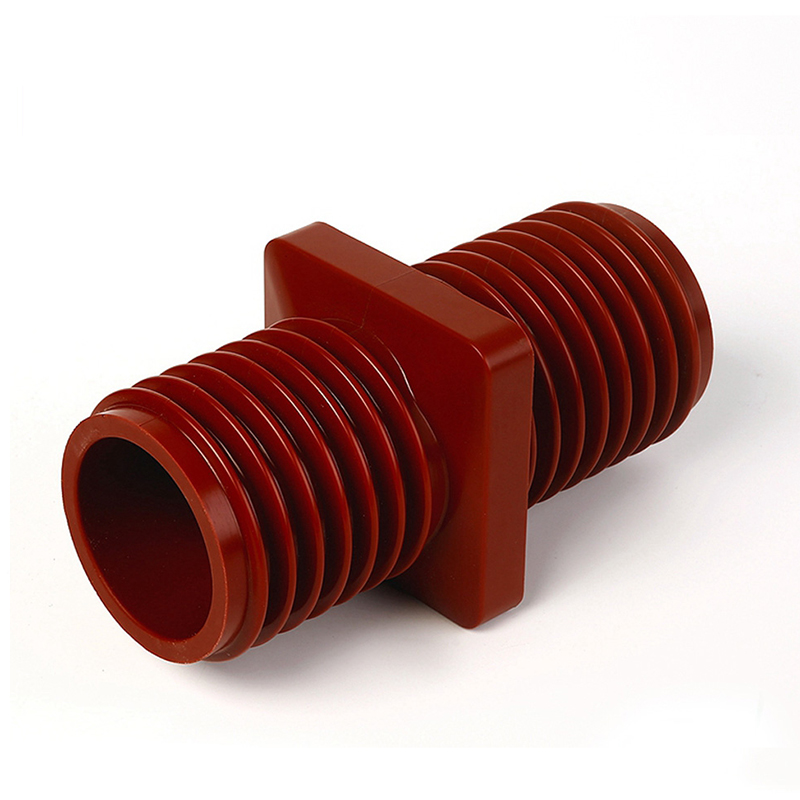

40.5KV epoxy resin electrical wall bushing

Features:

1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.

Applicable Work Environment:

1. Indoor installation.2. Altitude: ≤1000m.3. Ambient temperature: +40°C~5°C.4. The relative humidity shall not be more than 85%at+20°C ambient temperature.5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

Details:

Model Name:	Superior quality 40.5kv epoxy resin busbar through insulator bushing
Brand:	Timetric
Application:	High Voltage / Switchgear
Operation condition	indoor installation
Color:	brown, red
Material	epoxy resin
Order note:	Please choose bus hole size
Rated voltage:	10KV,24KV,35KV,40.5KV
Rated Current	630A,1250A,2500A,4000A,6300A
MOQ:	50pcs
Packing:	1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port:	Shanghai Port / Ningbo Port
Payment terms:	L/C,T/T, Western Union
Delivery time:	within 10 days, depends on order quantity
Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

Our Advantages:

1. We are specialized in sales of high-voltage electrical insulation products: contact box, bending plate, insulator, sensor, wall bushing, contact arm bushing, insulated cylinder and tube.

2. Strict quality control and excellent after-sales service.

3. Experienced staffs answer all of your question in fluent English.

3. Customized design is available. OME&ODM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
