Base Insulator Epoxy Resin switchgear

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Type: Insulator

Material: epoxy resin

Application: High Voltage

Rated Voltage: 12kv

Tensile Strength: 2000N

Product name: insulator

Color: Red

Craft: APG

Usage: Switchgear

OEM: Avaiable

Dimension: 140*140

Product Detail

Product Tags

Base insulator epoxy resin switchgear


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name:  140*140
Brand: Timetric
Type: Sensor/ Transducer
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

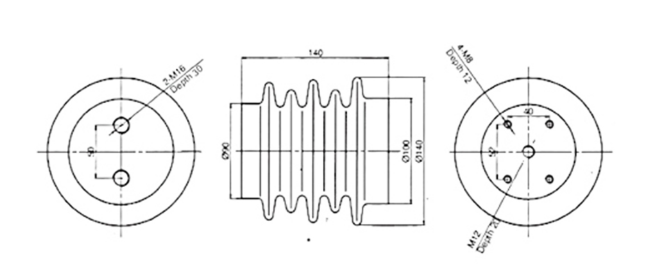

12KV LYC308 140X140 epoxy resin high voltage composite insulator for MV switchgear

Base insulator epoxy resin switchgear

Applicable Work Environment:

1.Altitude can’t exceed 1000m,and the altitude of plateau type can’t exceed 3000m

2. Surrounding temperature ranges from -10°C to +40°C,and the daily average temperature

3. There is no any dust,smoke,pollution of corrosive or flammable air,vapor and salt fog

4. There is no any frequent vibration or bumping in installation place

5. The product all could run in the case of dew and Ⅱ feculence condition
