Base Insulation Epoxy Resin switchgear

Short Description:

Product name:PT insulator

Rated voltage:12kV

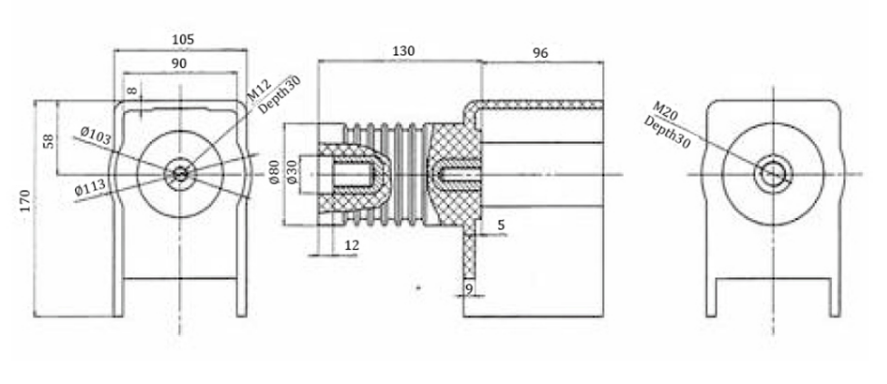

Size: 170*226

Material: epoxy resin

Craft: APG


Product Detail

Product Tags

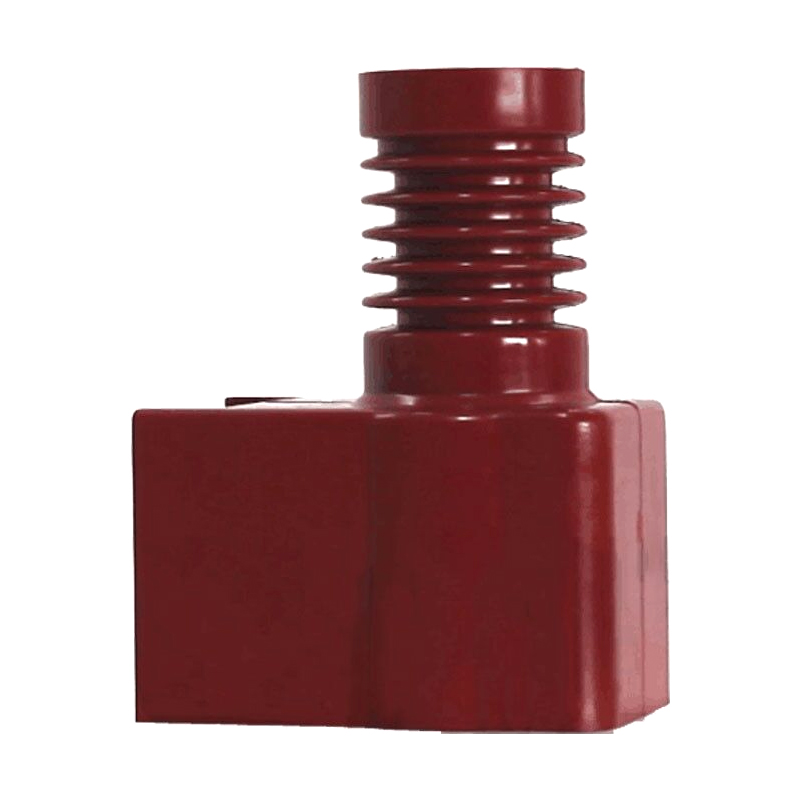

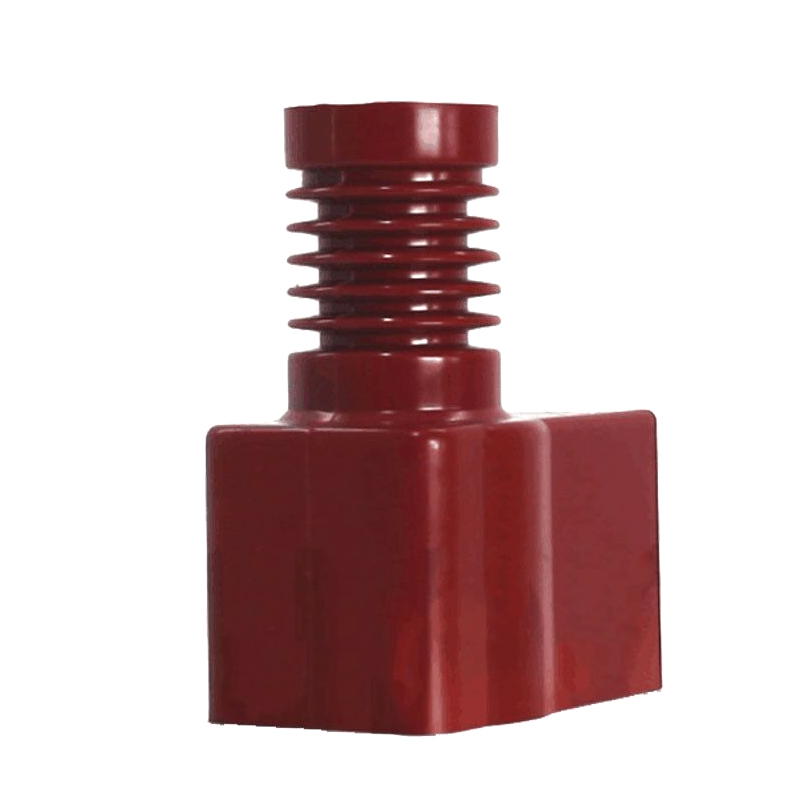

Base insulation epoxy resin switchgear


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

● Heat and water repellent Die-casting with APG process, resistant to dirt and humidity, no special cleaning required Made of high-strength unsaturated resin, no deformation at -10℃~40℃
● Strong insulation The material has been repeatedly tested and has high insulation performance, safety, environmental protection and durability
● Smooth surface The finished product is smooth, and a small amount of burrs are uniformly processed by the quality inspection workshop to ensure the safety of the construction process and not hurt your hands

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.

PS:Products with special requirements, specifications and dimensions that need to be improved can be designed and manufactured according to user requirements.


Model Name: Base Insulation Epoxy Resin switchgear
Brand: Timetric
Type: Sensor/ Transducer
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification


LYC322 Thermal insulation materials tape PT insulators epoxy resin support insulator for switchgear 12KV

Base insulation epoxy resin switchgear
