Busbar Insulator High Voltage post insulator

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Type: Insulator

Material: Epoxy resin

Application: High Voltage, Electric transmission

Rated Voltage: 12kv

Tensile Strength: excellent

Intallation: Indoor

Color: Red

Feature: APG Craft

Sample: Sample Avaliable

size: 85*140

Product Detail

Product Tags

Busbar insulator high voltage post insulator


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name: 85*140
Brand: Timetric
Type: Sensor/ Transducer
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

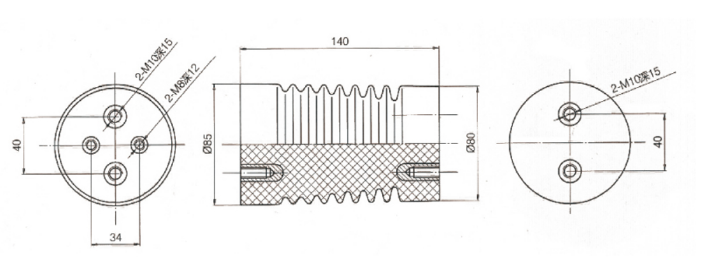

Busbar Insulator High Voltage post insulator LYC296

Busbar insulator high voltage post insulator

12KV Epoxy Resin Insulator for Switchgear

1.High quality and most competitive price, timely delivery, in a variety of designs and specification
2.Material:Epoxy resin
3.Tensile strength:More than 8000N
4.Power frequency withstand voltage 42KV/5MIN
5.Usage:high voltage switchgear and earthing switch,insulation, isolation & connection transition in various kinds of handcart switchgear
6.Craft:The Automatic Pressure Gelation (APG)
7.OEM&ODM service
8.Sample order are also support

Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. Ambient humidity: The average humidity of a day shall not be more than 95%, the average humidity of a month shall not be more than 90%;
4. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Technical Requirement
1. The copper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse voltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not be more than 65º C if the contact box is used for long time in rated current condition.
