Bending Plate Insulator For 1.2 KYN61 cabinet

Short Description:

Place of Origin: Zhejiang, China

Type: Insulator, Switch Box

Material: Composite Polymer

Application: High Voltage

Tensile Strength: 88

material: epoxy resin

usage: 40.5KV Switchgear

switchgear widtch: 1400MM / 1200MM

Protection Level: IP65

Product Detail

Product Tags

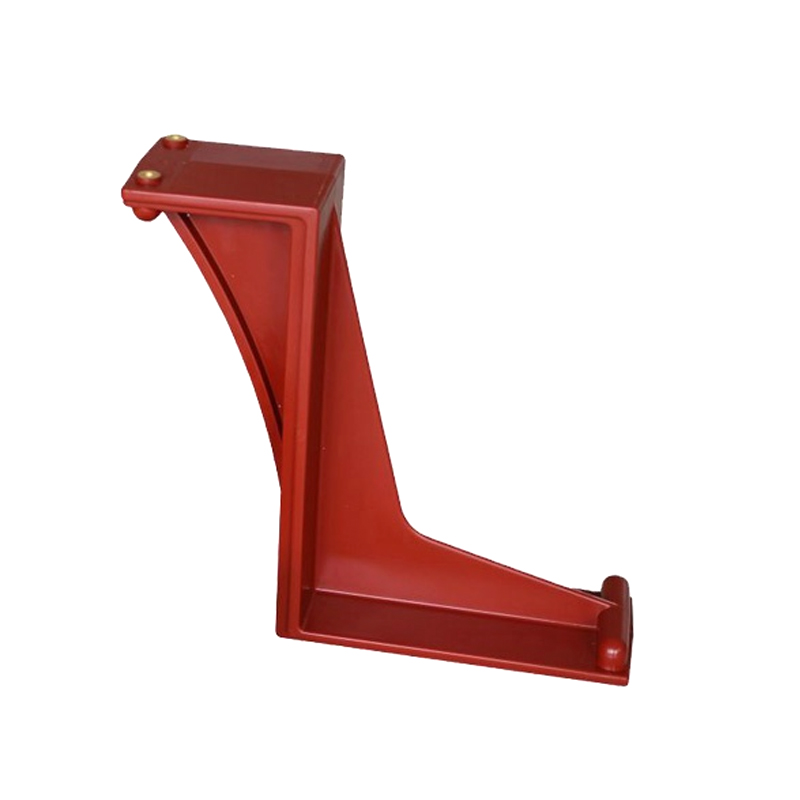

Bending plate insulator for 1.2 KYN61 cabinet


1. The product adopts epoxy resin material by APG technology

2. It gains high level of insulation, intensity and stability.

3. With nice appearance, bending load degrees higher, widely used in ABB Switchgear

4. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad,


Size: 583*540
Color: brown, red
Brand Name: Timetric
Rated voltage: 40.5kV
MOQ: 1pcs
Loading port: Shanghai / Ningbo
Payment terms: L/C,T/T, Western Union
Delivery time: within 20 days, depends on order quantity
Packing: 1.Each one is wrapped with plastic film2.Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally

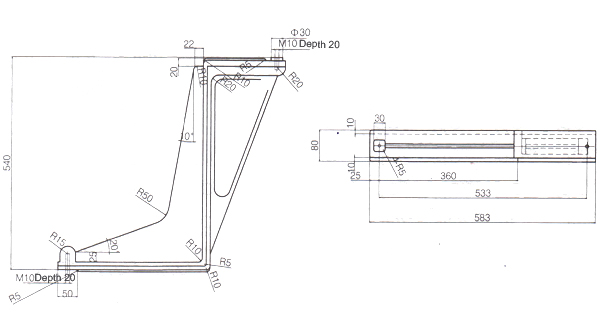

Bending Plate Insulator For 1.2 KYN61 cabinet LYC260

40.5kv epoxy support insulator for Switchgear

Technological process:

1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine, Electrical performance fit.

2. Adopts high toughness epoxy resin manufacture , Machine capability excellent, And adopts low reaction activity recipe system , Material solidifies slow , Product body stress low. Maximum field enhances product  machine capability.

3. Adds activated silica slight powder, further enhance epoxy resins machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.

4. Adds organic color, Product color and luster bright, Does not reduce product  insulate performance
