Epoxy Resin post insulators For Switchgear

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Type: Insulator

Material: epoxy resin

Application: High Voltage

Rated Voltage: 12kv

Tensile Strength: excellent

Product name: High voltage sensor

Color: Red

Size: 80*186

Shape: corkscrew post insulator

Usage: high voltage switches

Craft: APG

Product Detail

Product Tags

Epoxy Resin post insulators For Switchgear

It is a special insulation control, also known as supporting insulators, which acts as a support wire and prevents current from returning to the ground, increasing the creepage distance.The two screws at the bottom of the sensor act as conductors to induce current and transmit information to the charged display.


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name: Epoxy Resin post insulators For Switchgear
Brand: Timetric
Type: Sensor/ Insulator
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

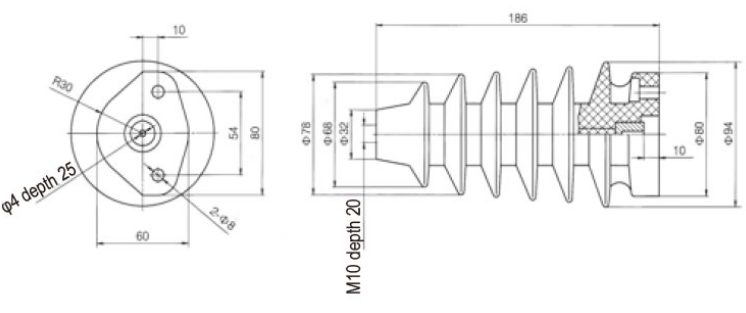

10KV epoxy resin casting switchgear insulator sensor

10KV epoxy resin casting switchgear insulator sensor

Epoxy Resin post insulators For Switchgear

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components.We will give you best quality and price!
