Contact Case Insulating Epoxy resin switchgear

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: CH3-24KV-252

Application: High voltage

Rated current: <=3150-4000A

Rated voltage: 24KV

Material: Epoxy Resin

Product Detail

Product Tags

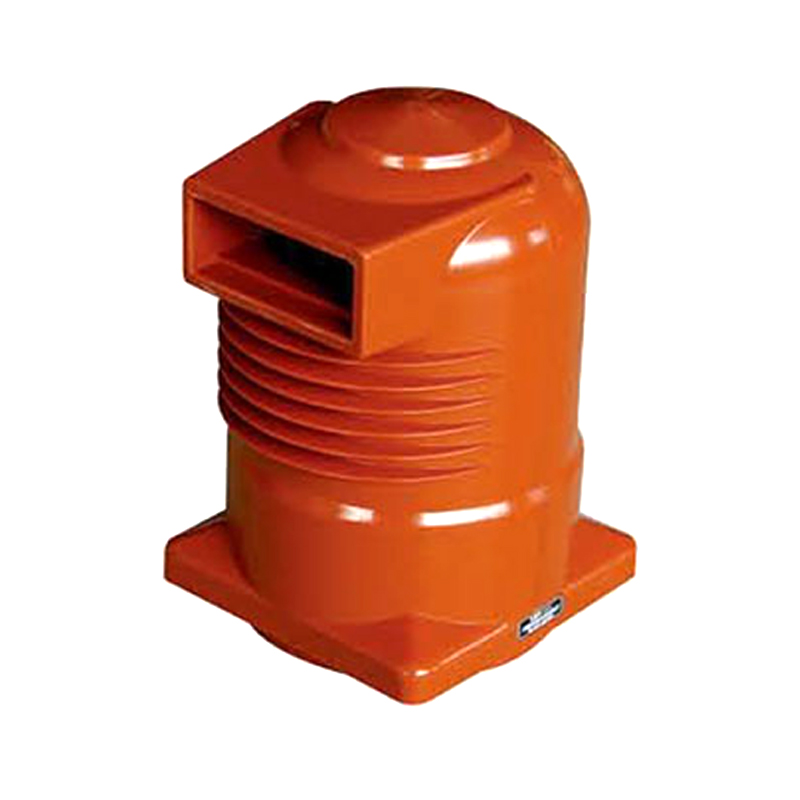

Contact case insulating epoxy resin switchgear


1. The product adopts epoxy resin material

2. It gains high level of insulation, intensity and stability.

3. It provides different specifications based on the size of electric current for the user’s choice

4. The contact box is formed by epoxy with APG Technology

Applicable Work Environment:

1. Indoor installation.2. Altitude: ≤1000m.3. Ambient temperature: +40°C~5°C.4. The relative humidity shall not be more than 85%at+20°C ambient temperature.5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance


Model Name: (2000A-3150A)
Brand: Timetric
Type: Contact Box
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE and ISO 9001:2000
Rated voltage: 12 KV,24kv
Material: Resin
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2.Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

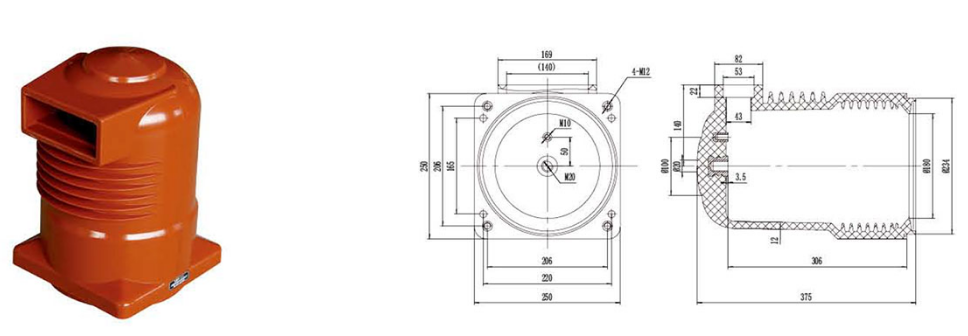

Contact Box Insulator 24kV CTH-24Q-250 for Switchgear

Contact case insulating epoxy resin switchgear

Our Advantages:

1. We are specialized in sales of high-voltage electrical insulation products.

2. Strict quality control and excellent after-sales service.

3. Experienced staffs answer all of your question in fluent English.

3. Customized design is available. OEM & ODM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs

Packing & Delivery

Strong package, Safety first.

Inside with foam to support the product, put it in carton or wooden box, fixed it on pallet.
As long as possible to keep the products safe until it arriving customer’s warehouse.
Clearly marking label outside of package, customers will be easy to identify their goods.
