Ah3-12kv 270 4000A Red Brown Epoxy Resin Insulated Contact Box

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Name: CH3-12/280contact box

Rated voltage: 12kV

Rated current: 3150-4000A

Material: Epoxy Resin

Color: Red

Application: High voltage electrical distribution

Product Detail

Product Tags

Product dispaly

 Red Brown Epoxy Resin Insulated Contact Box 4000A for 12KV Switchgear

       Rated voltage 10kV
Maximum voltage 12kV
Rated current 3150-4000A
Material                       Epoxy resin
Operation Condition Indoor installation
Minimum Order Quantity No MOQ
Port  Ningbo or Shanghai
Delivery Time Within 15 days
Packing Details 1.Each one is wrapped with plastic film
2.Packed in cartons
3.Cartons are sealed in a wooden box
4.The cases are bound with iron belts externally

General Introduction:

The contact box is a pressure gel forming the structure of EPOXY resin APG process. It is used for all kinds of handcart switch cabinets and plays the role of insulation isolation and connection transition.

Conditions of Use:

1. Altitude shall not exceed 1000M;
2. Ambient air temperature +40ºC~10ºC;
3. When the air temperature is +20ºC, the relative humidity shall not exceed 95%;
4. Places without gas, steam, dust and other explosive and corrosive media that seriously affect the insulation of contact box.

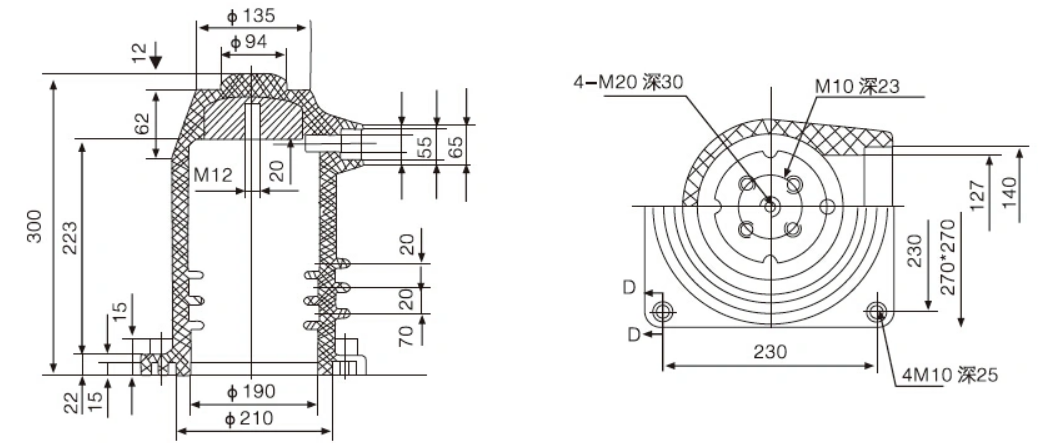

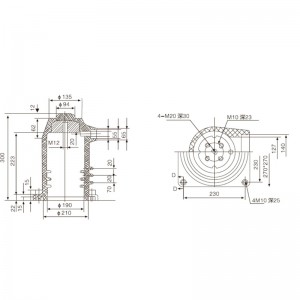

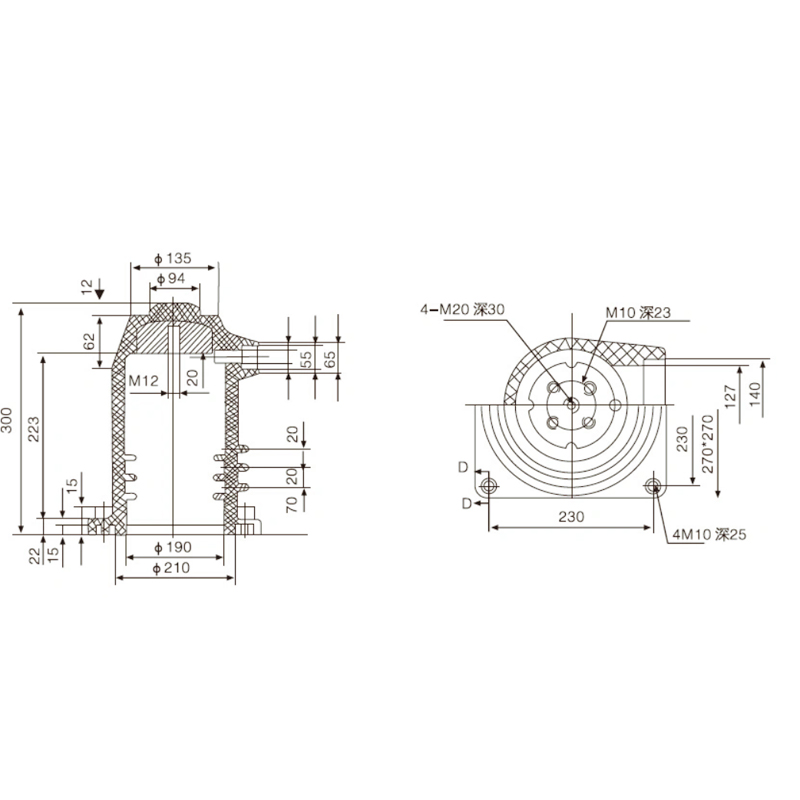

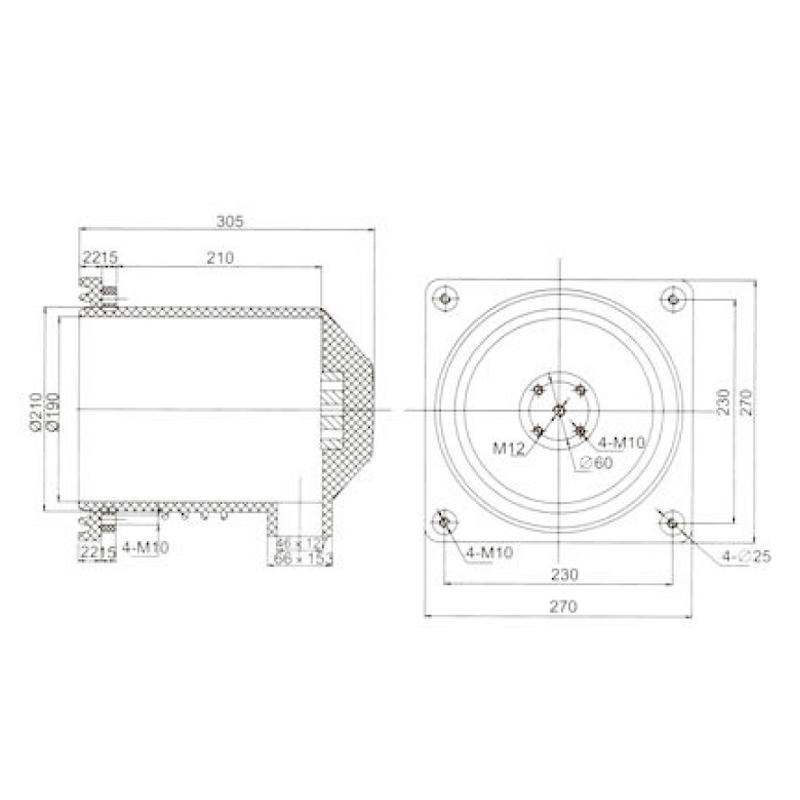

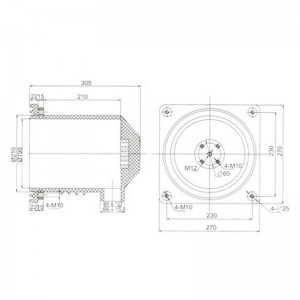

Outline Dimension Drawing:

Ah3-12kv 270 4000A Red Brown Epoxy Resin Insulated Contact Box LY106
