Cubicle Switchboard Electric Post insulators

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: ZJ-24kv

Type: Insulator

Material: Epoxy resin

Application: High Voltage, High voltage switchgear

Rated Voltage: 24KV

Product Name: 24KV Red Epoxy Resin conjoined Insulator

Color: Red, brown

Package: Standard Package

Port: Ningbo or Shanghai

Product Detail

Product Tags

Cubicle switchboard electric post insulators


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name: Cubicle Switchboard Electric Post insulators
Brand: Timetric
Type: Sensor/ Transducer
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

Manufacturing Technique

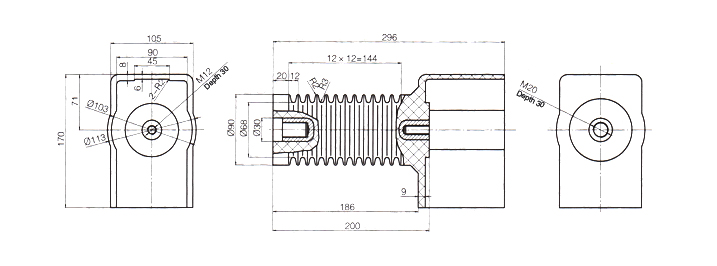

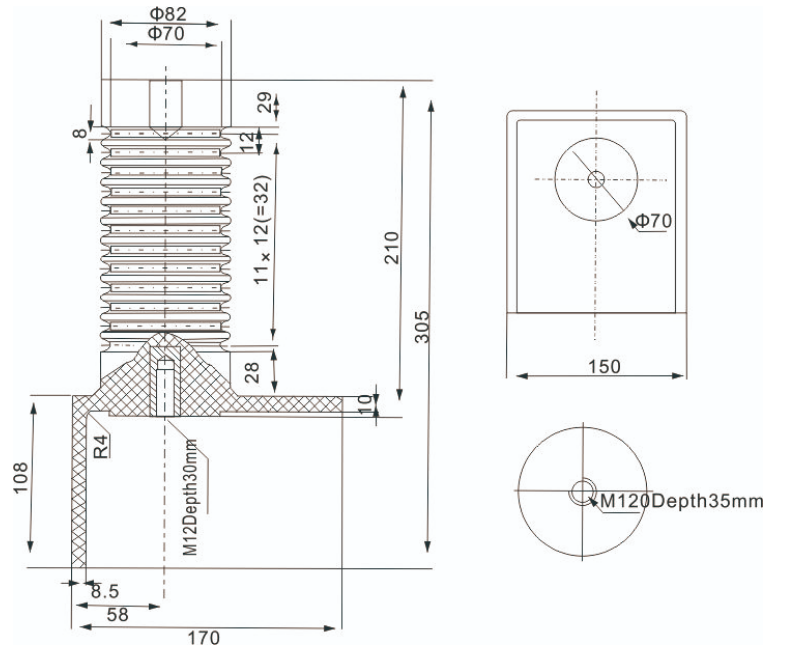

Cubicle Switchboard Electric Post insulators LYC33424KV Red Epoxy Resin Indoor Installation conjoined Insulator for KYN28-24 High Voltage Switchgear

Cubicle switchboard electric post insulators

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components.We will give you best quality and price!

Usage: High Voltage Switchgear
Material:Epoxy Resin
Specification: 24KV conjoined Insulator

Operating Condition
2. Ambient temperature:+40°C~10°C
3. The relative humidity should not be more than 95%at+20°C ambient temperature
