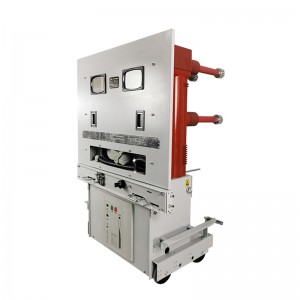

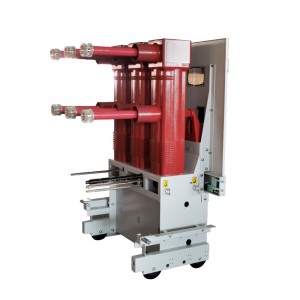

VS 1-40.5T Type Indoor High Voltage Vacuum Circuit Breaker
General Description:
VS1-40.5/T type indoor high voltage vacuum circuit breaker is used for switchgear KYN61-40.5(Z). It’ s the most new type of power supply and distribution equipment. This products is in accordance with GB1984-2003 standard.
Structure Characteristic:
This kind of VCB adopt integrated design and is different from open-type vacuum circuit breaker and insulation vacuum circuit breaker.1.The vacuum interrupter and conductive circuit fitting with ring raises resin through the special craft are sealed into a pole.2.Then with the modularized circuit assembled in modular circuit breaker.3.This kind of VCB with excellent electrical&mechanical properties the advanced level of the vacuum circuit breaker in the modern world.
Technical Characteristics:
The design of this kind of VS1-40.5/T takes into account the Chinese market and special areas requirements, making the vacuum interrupter and conductive circuits into a embedded pole by the advantage of the solid insulation and advanced technology of APG.This not only simplifies the pole assembly process and prevent the vacuum interrupter circuit conductive connecting bolt to run the VS1 ration as a result of loose, but also improve reliability and avoid the effect of external mechanical force and ambient conditions (such as dust, humidity, nasty, high sea level, animal), and avoid the potential risk of vacuum interrupter operating in adverse environments caused by insulation and then lead to a lower level of vacuum circuit breaker in the sub-gate under vacuum interrupter surface elastomer. Therefore, within the service life of the circuit breaker, the pole is completely maintenance-free. The circuit breaker’s solid insulation replace SF6 to meet the need for external insulation. It’ s more environmental protection and represents the advanced level of the vacuum circuit breaker in the modern world.
Applying ambient Conditions:
1. Ambient temperature: -15℃一+40℃, the average temperature is not more than 35℃ in 24 hours2. Height above sea level:≤1000m;3. Relative humidity: the average humidity of a day should be no more than 95%; the average humidity of a month should be no more than 90%;4. Saturated vapor pressure: the average pressure of a day should be no more than 2. 2kPa, the average humidity of a month should be no more than l.8kPa;5. Environmental conditions: It should be installed in the places without dust, smoke, chemical erosion, combustible gas and saline fume pollution.
VS 1-40.5T Type Indoor High Voltage Vacuum Circuit Breaker
Following information is required for order:
1. For vacuum circuit breaker truck:
Full type name, rated current, rated short-circuit breaking current
The switchgear with or without earth switch
Rated voltage of operating circuit
Name and quantity of spare parts and components
Other special requirements for VCB
2.For isolation truck: Full type name, rated current
3. For fuse truck:
Full type, name,quantity of product
Type and quantity of fuse
Is equipped with surge arresters and discharge counter
For special requirement, please consult with manufacture
Overview:
ZN-85-40.5 (modular type) indoor vacuum circuit breaker is suitable for indoor high voltage equipment with rated voltage of 40.5kV and three-phase AC 50Hz. It can be used as industrial and mining enterprises, power plants and substations as load current, overload current and short circuit. For current use, it is suitable for frequent operation.
Environmental conditions:
1. Altitude: the altitude does not exceed 2000m;
2. Ambient temperature: no higher than +40℃, not lower than -25℃;
3. Relative humidity: the daily average does not exceed 95%, and the monthly average does not exceed 90%;
4. Earthquake intensity: no more than 8 degrees;
5. Locations without fire, explosion hazard, serious contamination, chemical corrosion and severe vibration.
Structural features:
1. The circuit breaker adopts the arc extinguishing chamber on the upper part, and the structure of the whole structure under the mechanism is favorable for debugging;
2. It adopts composite insulation structure of air and organic materials, which is compact in design and light in weight;
3. It can be equipped with the vacuum interrupter of Cutler-Hammer Company of the United States and the domestic ZMD vacuum interrupter. The two arc extinguishing chambers adopt the longitudinal magnetic field arc extinguishing, low interception and good asymmetric breaking performance.
4. Simple spring operating mechanism, 10,000 operations free of maintenance.
5. Screw drive mechanism, labor-saving, stable, self-locking performance.
The main technical parameters
Name |
Unit |
Value |
Rated voltage |
KV |
40.5 |
1min power frequency withstand voltage (effective value) |
KV |
95 |
Lightning impulse withstand voltage (effective value) |
KV |
185 |
Rated frequency |
Hz |
50 |
Rated current |
A |
1250,1600,2000 |
Rated short-time withstand current |
KA |
25,31.5 |
Rated peak withstand current |
KA |
63,80 |
Rated short circuit duration |
S |
4 |
Rated short-circuit breaking current |
KA |
25,31.5 |
Rated short circuit closing current |
KA |
63,80 |
Rated operation sequence |
0-0.3s-Co-180s-Co |
|
Break time |
ms |
<80 |
Rated short-circuit breaking current breaking times |
time |
20 |
Single capacitor bank breaking current |
A |
630 |
Back-to-back capacitor bank breaking current |
A |
400 |
Rated operating voltage |
V |
~110/-110,~220/-220 |
Mechanical life |
time |
10000 |
