Awl Insulator For High Voltage HV switchboard40.5KV

Short Description:

Material:Epoxy resin

Rated voltage:33kV

Creepage distance:1100mm

Application for AC metal-enclosed switchgear


Product Detail

Product Tags

Awl Insulator For High Voltage HV switchboard 40.5KV


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.


Model Name:  172*320-380
Brand: Timetric
Type: Sensor/ Transducer/Insulator
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE
Rated voltage: 12kV
MOQ: 50pcs
Packing: 1. Each one is wrapped with plastic film2. Packed in cartons or wooden box3.The cases are bound with iron belts externally
Loading port: Shanghai  Port / Ningbo  Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 15 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

Epoxy resin high strength indoor high voltage post insulator for AC Movable Metal-clad enclosed Switch gear

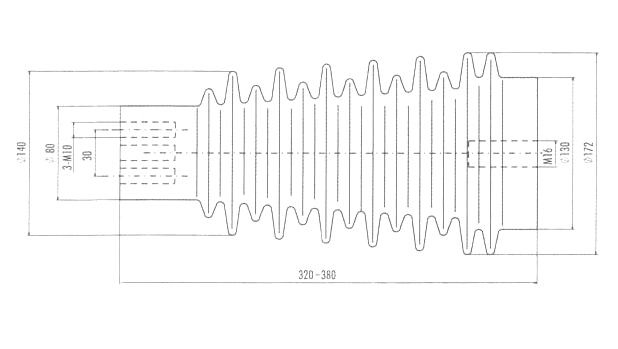

Awl Insulator For High Voltage HV switchboard LYC344 40.5KV

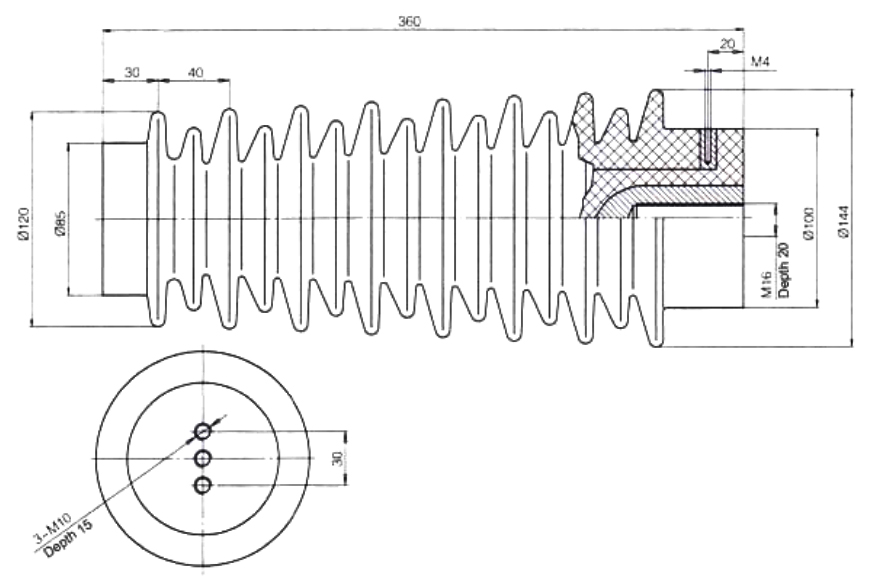

Busbar Sensor High Voltage For Switchboard LYC360 405KV

Awl Insulator For High Voltage HV switchboard 40.5KV

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components.We will give you best quality and price!
