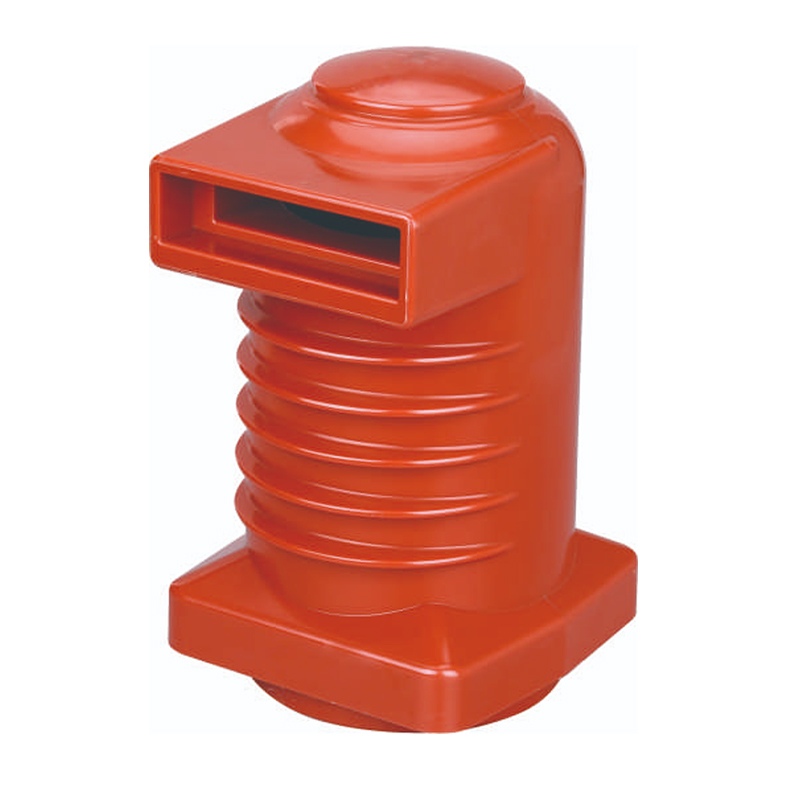

CH1-24-225 contact box

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: CH1-24-225

Application: High voltage

Rated current: <=3150-4000A

Rated voltage: 24KV

Material: Epoxy Resin

Color: red

Product Detail

Product Tags

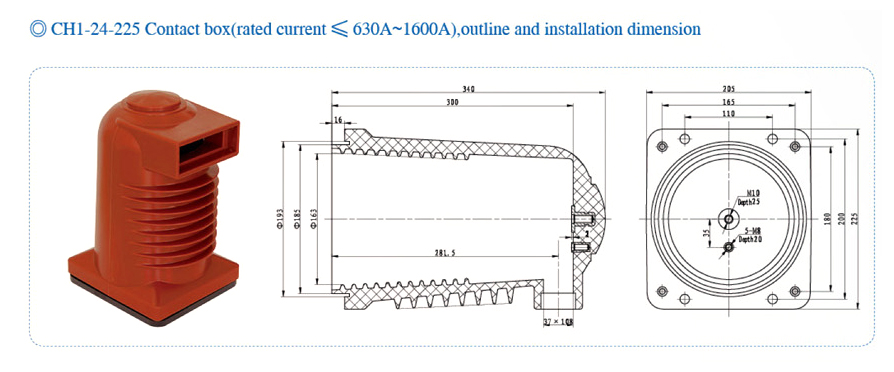

CH1-24-225 Contact box(rated current ≤630A~1600A),outline and installation dimension

CH1-24-225 Contact box 001

Contact Box Insulator  for Switchgear

Ordering code
1501001 (Single hole)
Ordering code
1501002 (Double holes)
Rated current
Power frequency withstand voltage
Partial Discharge
26.4kV<10pC. 21kV≤2pC
Lightning impulse voltage
Glass transaction temperature
Creepage distance
