High Voltage Contact Box Insulator CH3-10Q/250

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Model Number: CH3-10Q/180

Type: Insulation Sleeving

Material: epoxy resin

Application: High Voltage

Rated Voltage: 24KV

Tensile Strength: 65

material: epoxy resin

application: high voltage

Product Detail

Product Tags

Packaging & Delivery

Packaging Details: standard exporting package with plywood or as per required
Port : Ningbo/Shanghai
Product Description

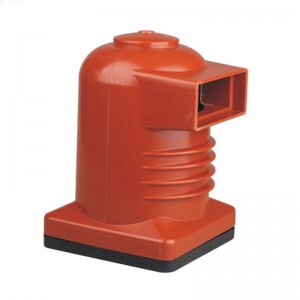

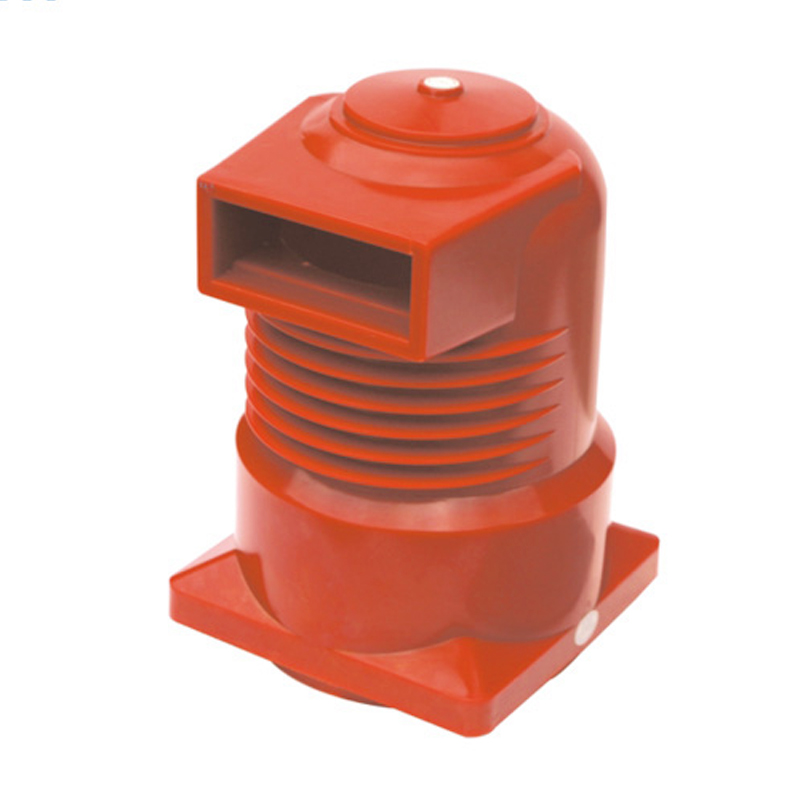

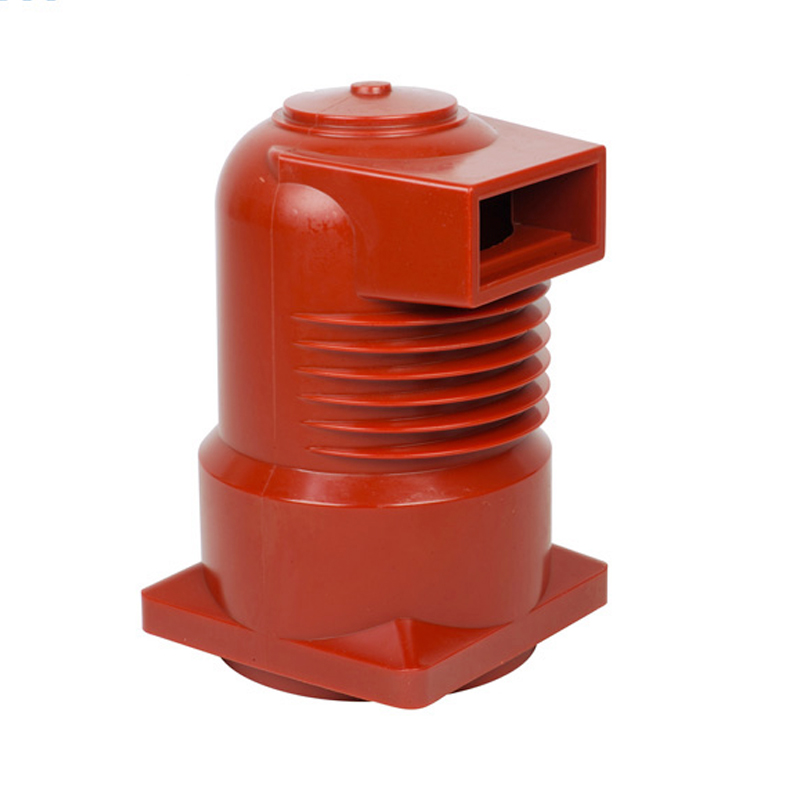

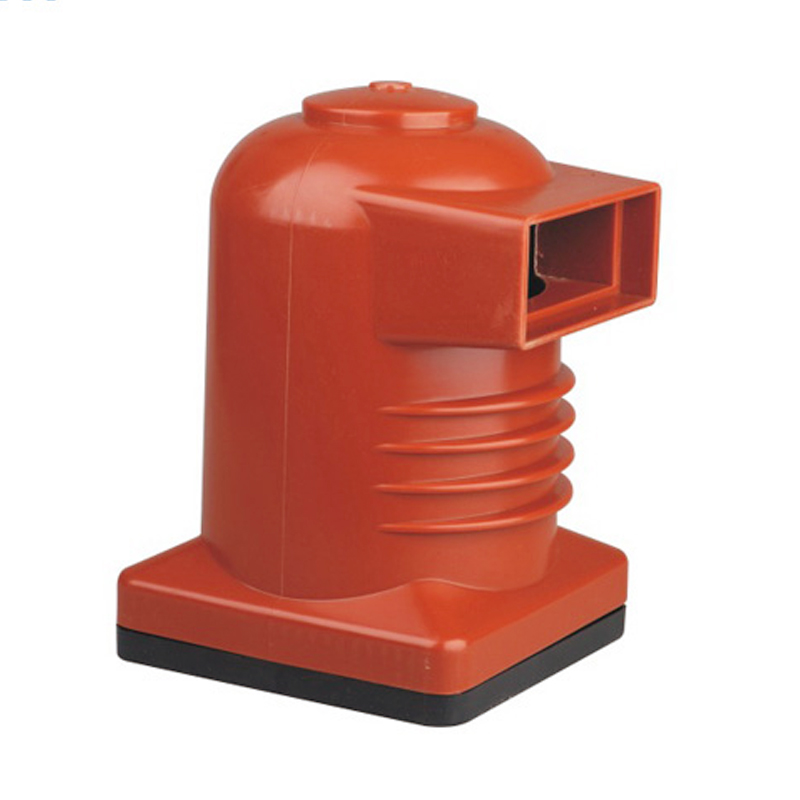

CH3-10Q/250 insulating Contact box   details listed as belows:Material: Epoxy Resin

Rated Current: 1250-1600A

Rated Voltage: 24KV

Max Voltage: 24KV

Technology: APG technology

Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Condition

1. Altitude: ≤ 1000m;

2. Ambient temperature: +40~-10º C;

3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;

4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Technical Date &Requirement

1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;

2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition;

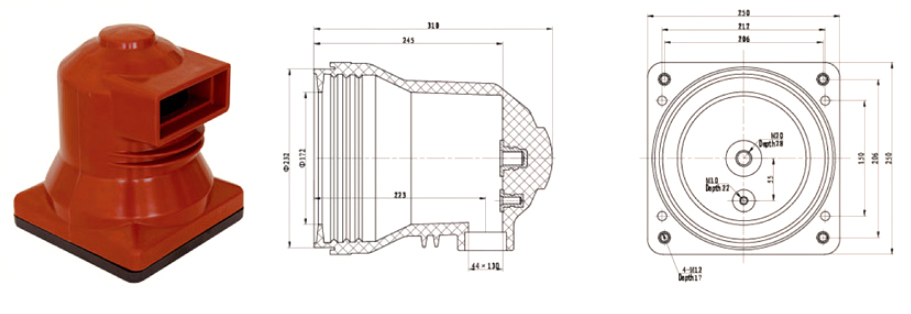

(Detailed picture listed as belows)

CH5-12-250 Contact box(rated current 2500~3150A),outline and installation dimension
