Bent Plate Epoxy Resin for 1.4m cabinet

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Type: Insulator contact box

Material: Epoxy resin

Application: High Voltage

Rated Voltage: 40.5KV

Tensile Strength: excellent

Product name: bending plate

color: brown, red

Current: 630A~4000A

Feature: Practical and durable

Packing: Carton with bubble

OEM: Accept

Usage: match with 40.5kv contact box

Product Detail

Product Tags

Bent plate epoxy resin for 1.4m cabinet


1. The product adopts epoxy resin material by APG technology
2. It gains high level of insulation, intensity and stability.
3. With nice appearance, bending load degrees higher, widely used in ABB Switchgear
4. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad,


Size: 558*416*218
Color: brown, red
Brand: Timetric
Rated voltage: 40.5kV
MOQ: 1pcs
Loading port: Shanghai / Ningbo
Payment terms: L/C,T/T, Western Union
Delivery time: within 20 days, depends on order quantity
Packing: 1.Each one is wrapped with plastic film2.Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally

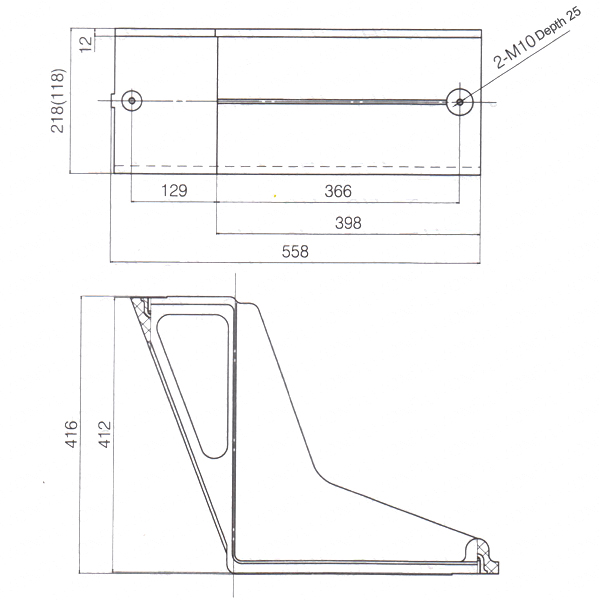

Bent Plate Epoxy Resin for 1.4m cabinet LYC258

Bent plate epoxy resin for 1.4m cabinet

Technological process:

1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine, Electrical performance fit.
2. Adopts high toughness epoxy resin manufacture , Machine capability excellent, And adopts low reaction activity recipe system , Material solidifies slow , Product body stress low. Maximum field enhances product machine capability.
3. Adds activated silica slight powder, further enhance epoxy resins machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.
4. Adds organic color, Product color and luster bright, Does not reduce products insulate performance

High Voltage Epoxy Resin Insulation Bending Plate AB Type

The 40.5KV bent plate (KYN61) is an epoxy resin APG process pressure gel forming structure, which is used in various handcart switch cabinets, and plays the role of insulation isolation and connection transition.

Operation Condition

1. Altitude: ≤1000m
2. Ambient temperature at -30℃ to +40℃, the daily average temperature should not more than 30℃.
3. . The daily average of relative humidity is less than 95%, the average monthly is less than 90%.
4. Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products.
5. Working environment should not be regular vibration or serious bumps.

Packaging & Delivery

Selling Units: Single item
Single package size: 6.2X4.8X3.6 cm
Single gross weight: 7.000 kg
Package Type:
1.Each one is wrapped with plastic film
2.Packed in cartons
3.Cartons are sealed in a wooden box
4.The cases are bound with iron belts externally
