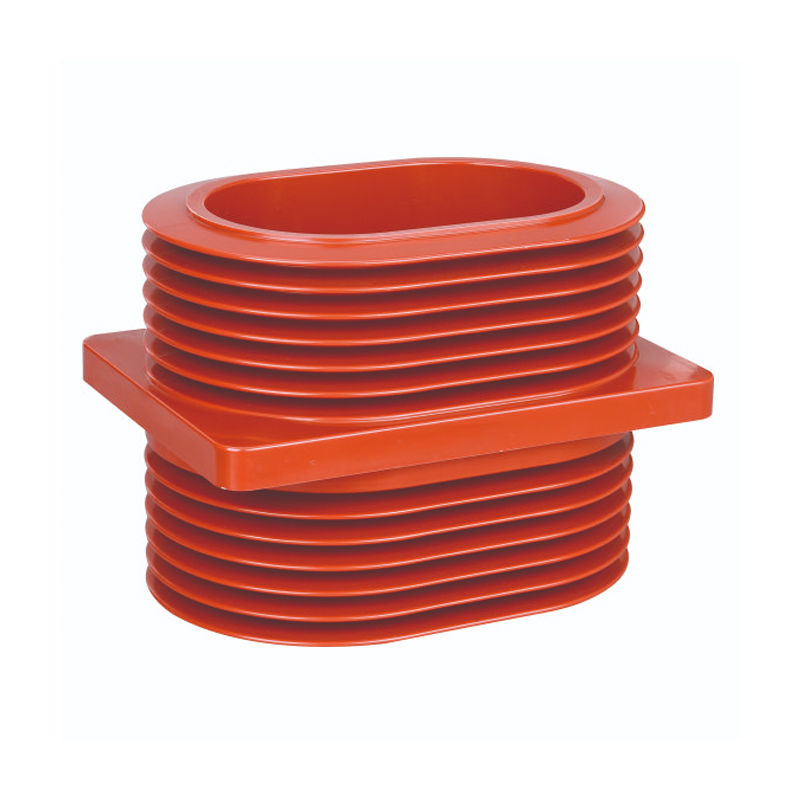

Apparatus Bushing Epoxy Resin For switch cubicle
Apparatus bushing epoxy resin for switch cubicle
Features:
1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.
2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
Applicable Work Environment:
1. Indoor installation.2. Altitude: ≤1000m.3. Ambient temperature: +40°C~5°C.4. The relative humidity shall not be more than 85%at+20°C ambient temperature.5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance
Details:
| Model Name: | Bushing |
| Brand: | Timetric |
| Application: | High Voltage / Switchgear |
| Operation condition | indoor installation |
| Color: | brown, red |
| Material | epoxy resin |
| Product Certification: | CE and ISO 9001:2000 |
| Rated voltage: | 12kV |
| MOQ: | 50pcs |
| Packing: | 1. Each one is wrapped with plastic film2. Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally |
| Loading port: | Shanghai Port / Ningbo Port |
| Payment terms: | L/C,T/T, Western Union |
| Delivery time: | within 15 days, depends on order quantity |
| Additional: |
1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification |
Apparatus bushing epoxy resin for switch cubicle
