KYN28A-12(GZS)High Voltage Switchgear Fttings

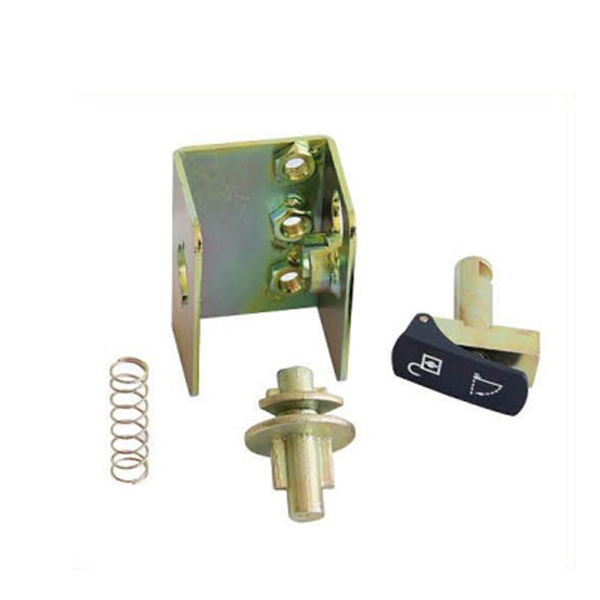

◎Earthing switch operation mechanism interlocking device (Transmission operation of connecting  assembly drawing

◎ Introduction
The interlock device has improved the reverse blocking of the back door on the basis of 5YF.363.010. When the rear door (sealed plate) is open, earthing switch could sill be operated in the original mechanism. But in this mechanism, the rear door (sealed plate) must be closed or the earthing switch could not be operated.
The working principal is that the back support has been turned into reverse blocking based on 5YF.363.010. When the rear door ( sealed plate ) is open, the pushing plunger of 8YF.1407.0402 will move out of the cabinet under the force of door (sealed plate). The interlock shaft will retract to the rear of the cabinet for lockout and the earthing switch could not be operated.

Earthing switch operating mechanism bevel gear details As belows:

1. Model No. : 5YF.363.010.5
2. Material: Iron with surface zincing
3. Application: 24KV KYN28A(GZS1) Indoor HV switchgear and circuit breaker
4. Certificate: ISO9001: 2000
5. Reliable installation, achieve five preventation requirement.
6. More than 10 years experience for manufacturing in this line
7. Most competitive prices with best quality, promptly delivery

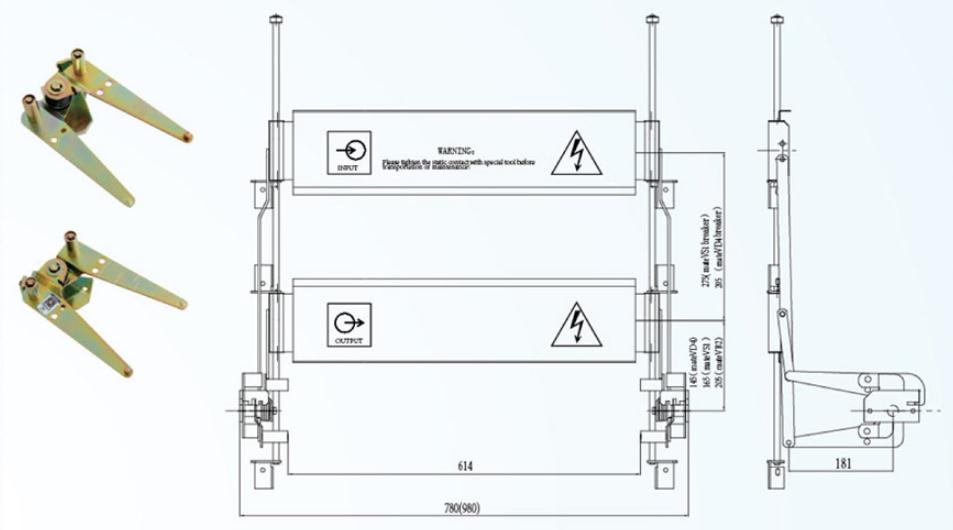

◎(800mm Mid-placed switchgear cabinet ) Shutter mechanism 5YF.320.010 installation drawing

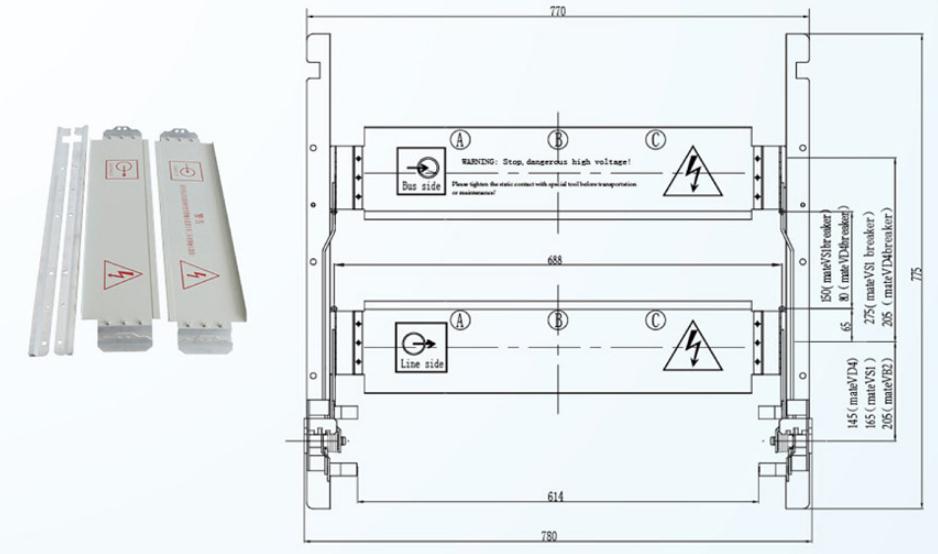

◎( 800mm Mid-placed switchgear cabinet ) Shutter mechanism 5YF.320.010.2 installation drawing
