35KV Earthing switchgear single bevel gear mechanism

Short Description:

Shape: BEVEL, Bevel

Applicable Industries: Energy & Mining

After Warranty Service: No service

Local Service Location: None

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Gear

Tooth Profile: HELICAL GEAR

Direction: Right Hand

Material: Steel

Processing: Die Casting

Pressure Angle: customized

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Standard or Nonstandard: Standard

Outer Diameter: others

Application: Switchgear

Product Detail

Product Tags

Earthing switch switchgear single conical gear bevel gear

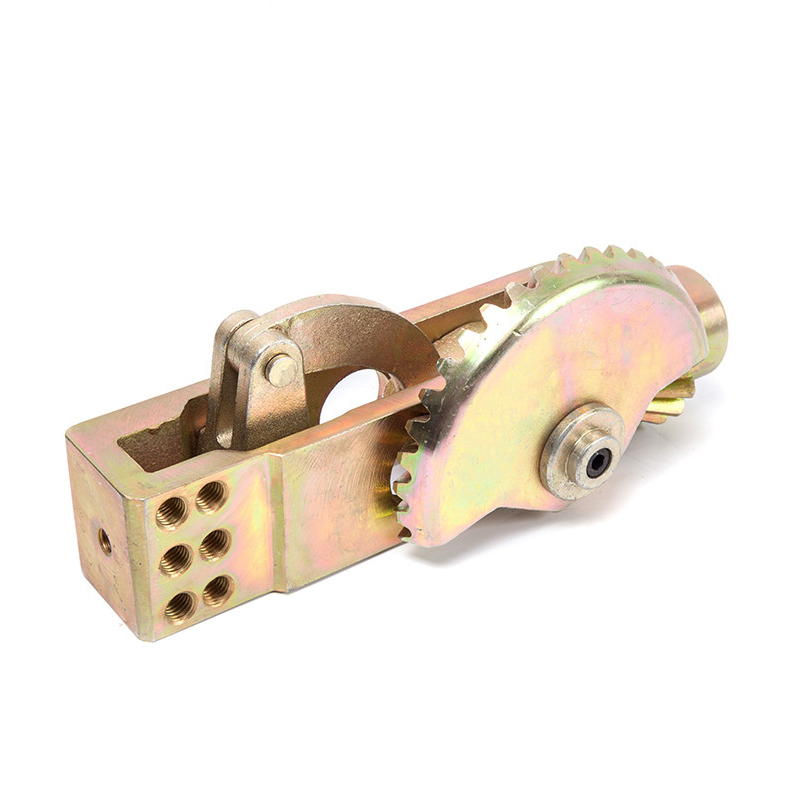

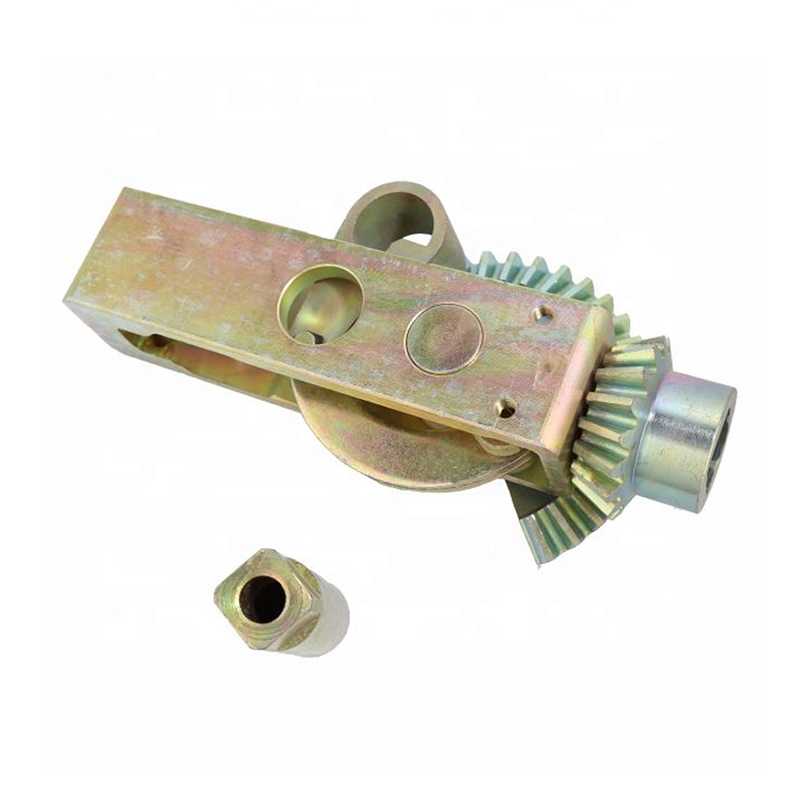

Operating instruction of CL-40.5 bevel gear:

1.CL-40.5 bevel gear used for JN  -40.5/31.5 earthing switch manual operation,can be used with KYN -40.5 and other models switchgear.

2.Rotational angle of operating shaft : 270° & 90°(open-close)

3.The bevel gear shown in the chart is right operation,and the left operation is commutation assembled by manufacturer,user could install it symmetrically on the left side according to the chart.


1. Used in the switchgear, it can work in the switch both door apparatus.
2. It can match with the JN15 series earthing switch 24kv .
3. Our aim is to provide our customers the best quality in the lowest price .
4. If you have any details ,please feel free to contact us.
Normal conditions

1) The altitude does not exceed 1000m
2) The ambient temperature is between -30°C to +40°C, the daily mean temperature is no greater than 30°C.
3) The daily mean relative temperature is no greater than 95%.The monthly mean relative temperature is no greater than 90%.
4) The installation area should be without the dangerous mediums which affect the conductive propertied and the insulating performance of the products, such as steam ,gas, chemical corrosive deposit, salt spray, dust, dirt, and so on.
5) There should be no frequent vibration and serious jolt.

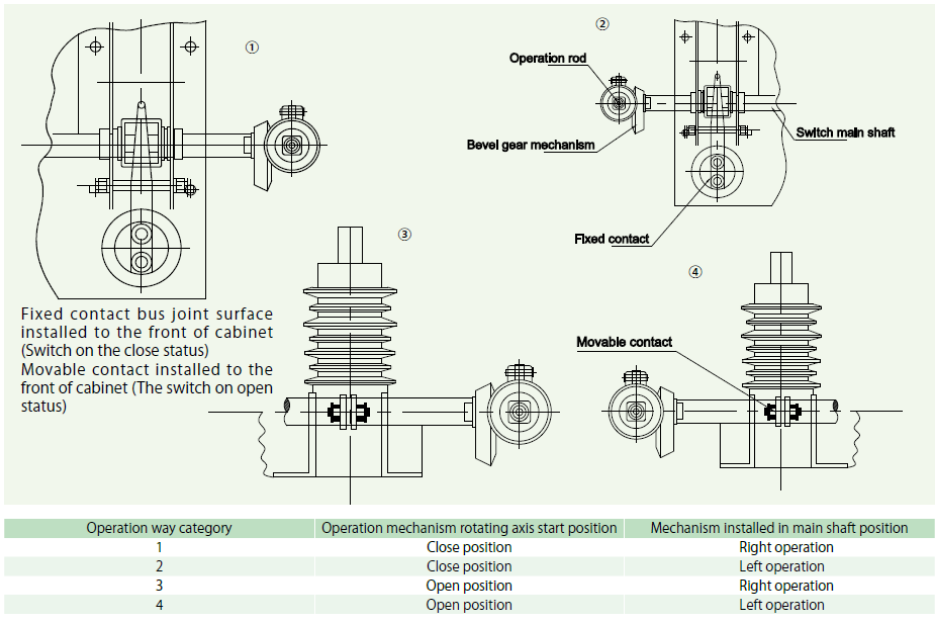

Earthing switch Bevel Gear Drive Operation 001
