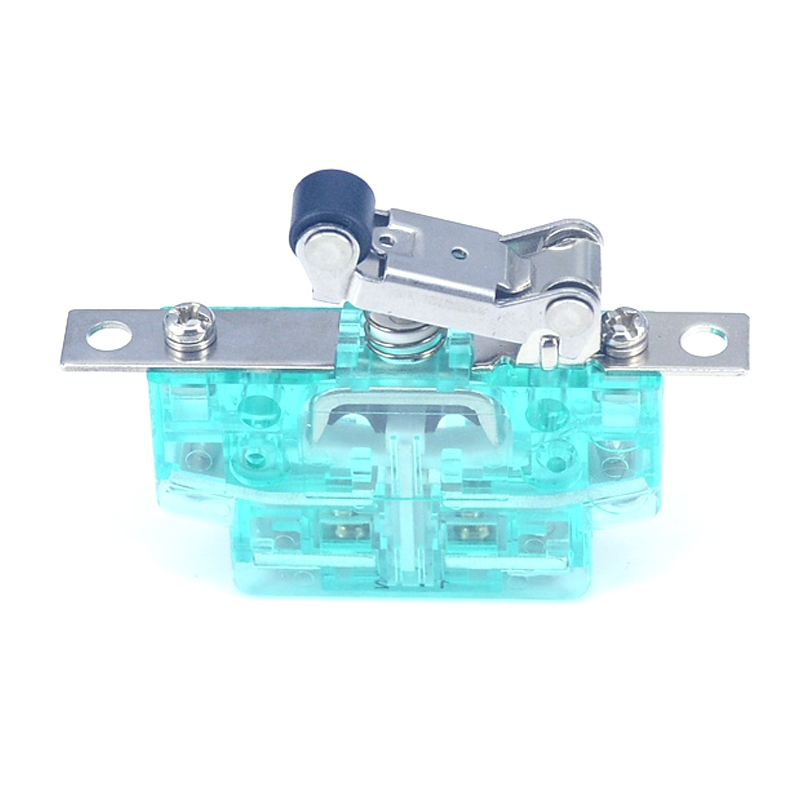

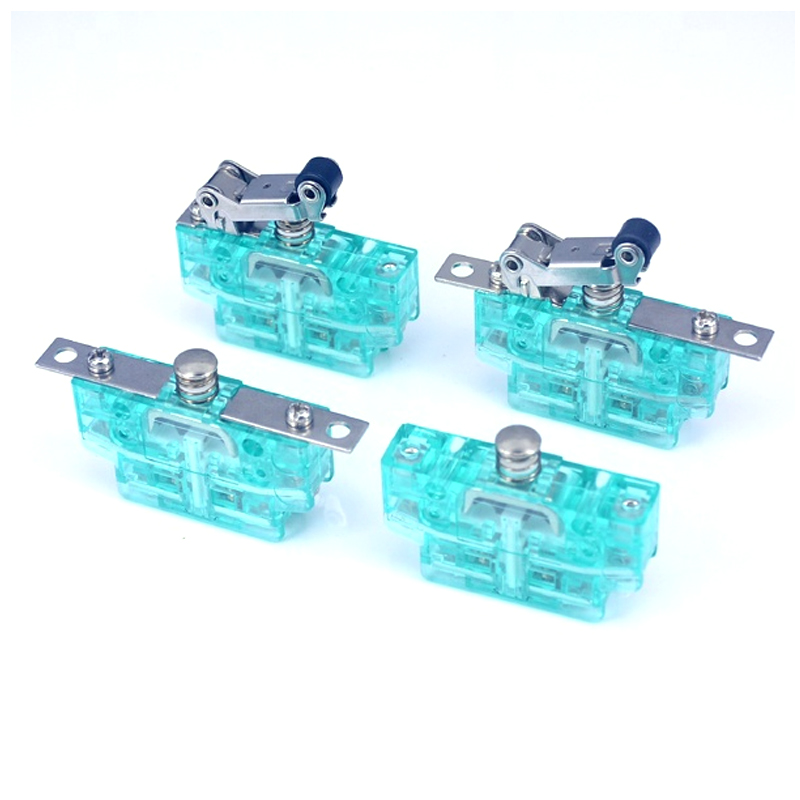

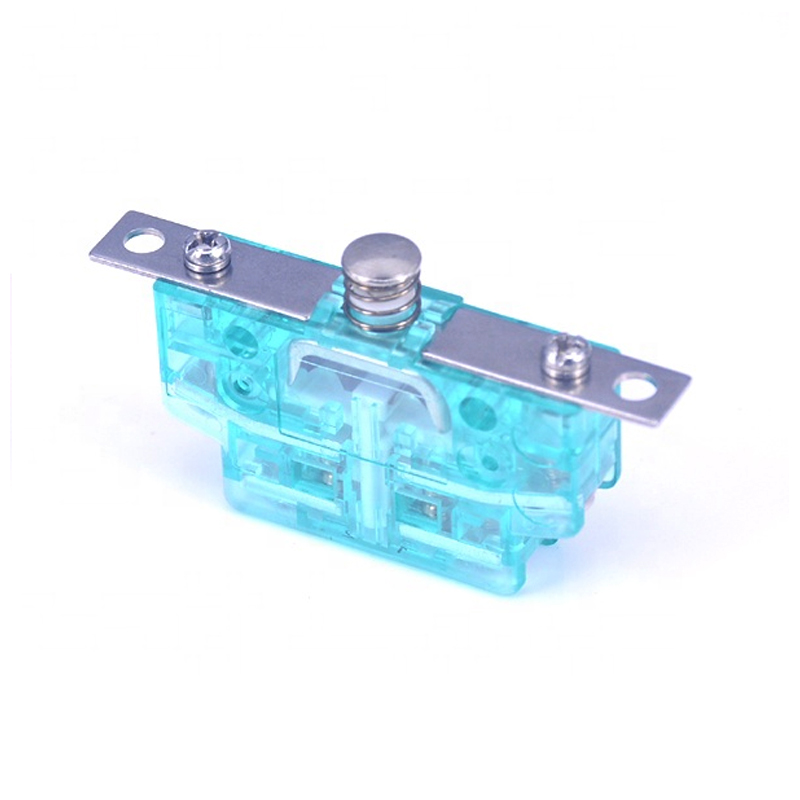

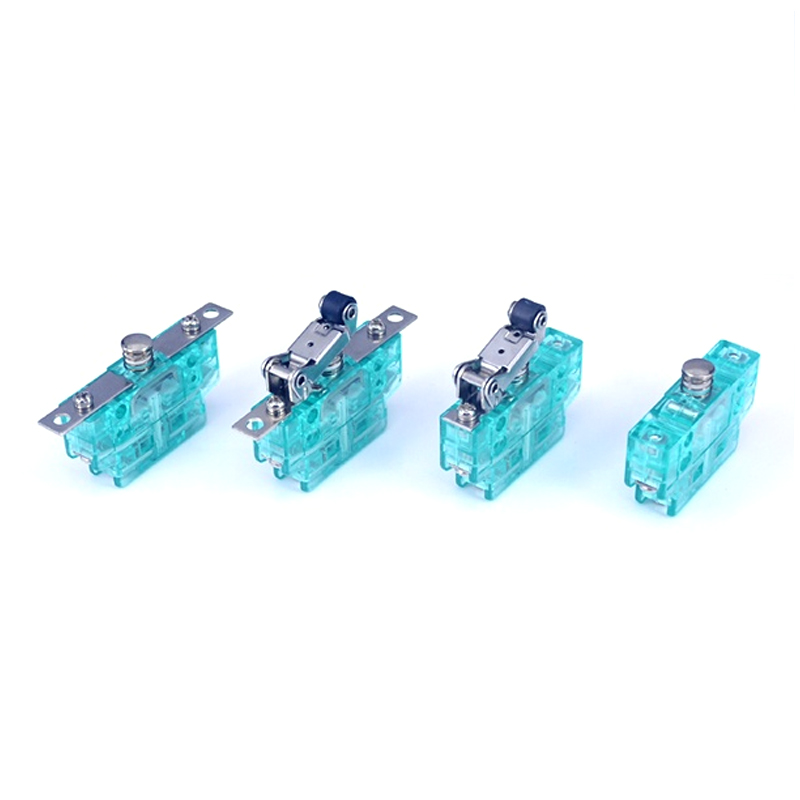

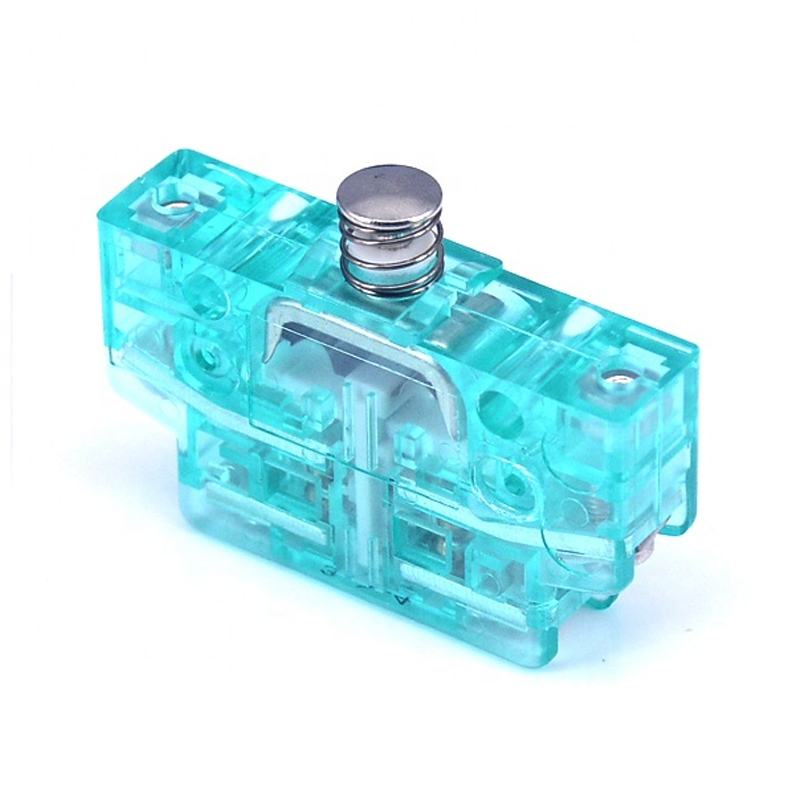

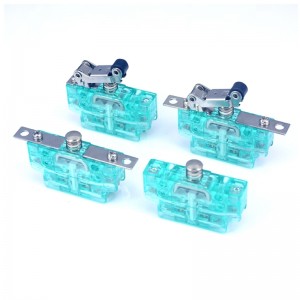

Snap action SK CSK travel switch SK-11 micro switch limited limit switch

Short Description:

Place of Origin: Zhejiang, China

Brand Name:  Timetric

Model Number: SK-11a/SK-11b/CSK-01b

Max. Current: 6A

Max. Voltage: 110V

Operating Temperature: 0

Protection Level: IP40

Material: Plastic

Color: Green

Contact type: 1NO1NC

Operating: Press

Switch type: Micro switch

Usage: VCB/switchgear or others

Product Detail

Product Tags

RCSK-1-11W Micro switch


RCSK-1 series magnetic switch is used to control all kind of high voltage switch operating instruction’s switch closing and making, lock and unlocked, signal retun and second return.

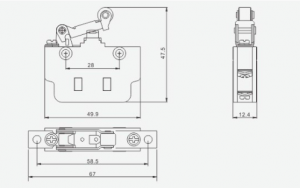

The switch is made up of shell, actuator, mounting, contact areas and terminals.

RCSK-1 series switch is widely used in AC control circuit of 50Hz, with a voltage up to 380V and a rated current 8A or in DC control circuits with a voltage up to 220C and a rated current DC-5A.

Features*miniature snap action switch

Positive opening operation: Reliable interruption even after contact welding, in compliance with IEC 60947-5-1Double break contacts: High electrical rating due to solid contact bridge and double break contactsPrecision switch: High switching accuracy and resistance to shock and vibrationMagnetic blowout: Optional blowout magnets to extinguish the arc at higher DC loadsSealed to: IP40 in accordance with IEC 60529Contact material: Silver

Applications*miniature snap action switch

Limit switches for machine, door and plant control systemsSwitches for driver‘s cab of rail vehicles and control panels in cranesAuxiliary switch for automation tasksSafety limit switch in control panels and electrical installations

RCSK-1-11W Micro switch



Working Conditions:

1. Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%. Saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4.The acceleration is not greater than 15m/ square seconds;
5.The air is not significantly affected by dust, smoke, corrosive and flammable gas, steam or salt fog contamination.
