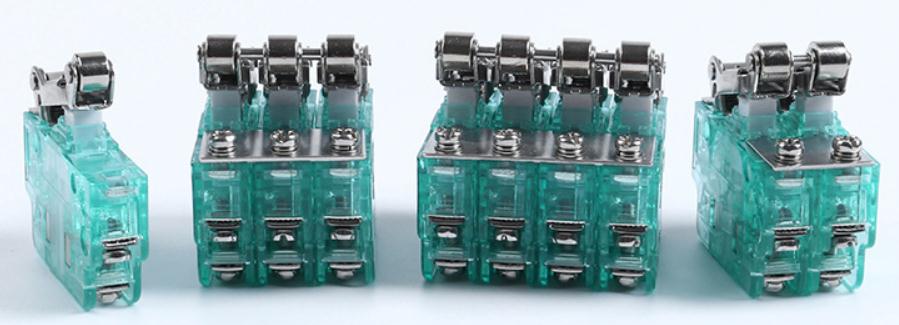

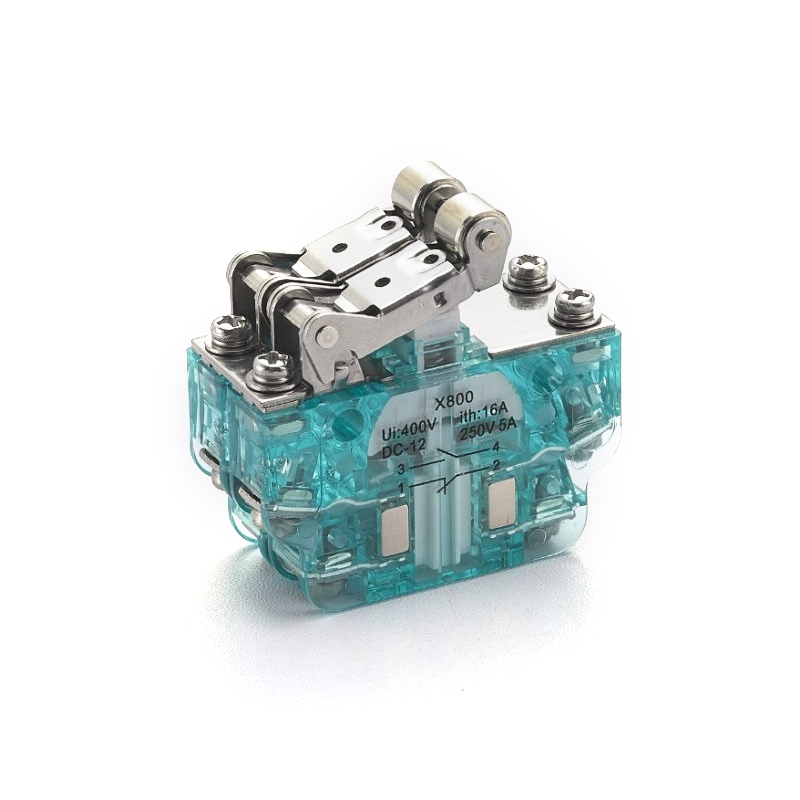

RCSK-1-33 Three Wheels Micro switch

RCSK-1-33 Three Wheels  Micro switch

Summary

RCSK-1 series magnetic switch is used to control all kind of high voltage switch operating instruction’s switch closing and making, lock and unlocked, signal retun and second return.

The switch is made up of shell, actuator, mounting, contact areas and terminals.

RCSK-1 series switch is widely used in AC control circuit of 50Hz, with a voltage up to 380V and a rated current 8A or in DC control circuits with a voltage up to 220C and a rated current DC-5A.

Features*miniature snap action switch

Positive opening operation: Reliable interruption even after contact welding, in compliance with IEC 60947-5-1Double break contacts: High electrical rating due to solid contact bridge and double break contactsPrecision switch: High switching accuracy and resistance to shock and vibrationMagnetic blowout: Optional blowout magnets to extinguish the arc at higher DC loadsSealed to: IP40 in accordance with IEC 60529Contact material: Silver

Applications*miniature snap action switch

Limit switches for machine, door and plant control systemsSwitches for driver‘s cab of rail vehicles and control panels in cranesAuxiliary switch for automation tasksSafety limit switch in control panels and electrical installations

RCSK-1-33 Three Wheels Micro switch

Features

Positive opening operation: Reliable breaking of the normally closed (NC) circuit even if the contacts have become welded together, in compliance with IEC 60947-5-1, Annex K .

Competence

The success of a product is owed to its quality

The Solarson product line is clearly defined and keeps up with the technological requirements of today‘s markets. Behind every individual snap-action switch you will find decades of experience in engineering and manufacturing.

Snap-action switches are designed with a snap-mechanism that allows fast switching, largely independent of the actuation speed. This precisely reproduces the operating position, and controls the arc more efficiently.

With their well known transparent-green housing, the safety function in Solarson´s snap-action switches is visible.

Applications

Solarson  snap-action switches are typically used with systems and components that require a high degree of safety and reliability, such as: Limit switches for machine, door and plant control systems Aux. switches in cam gear and control and indicating devices Switching elements for automation Safety limit switches for control systems and plant controls
