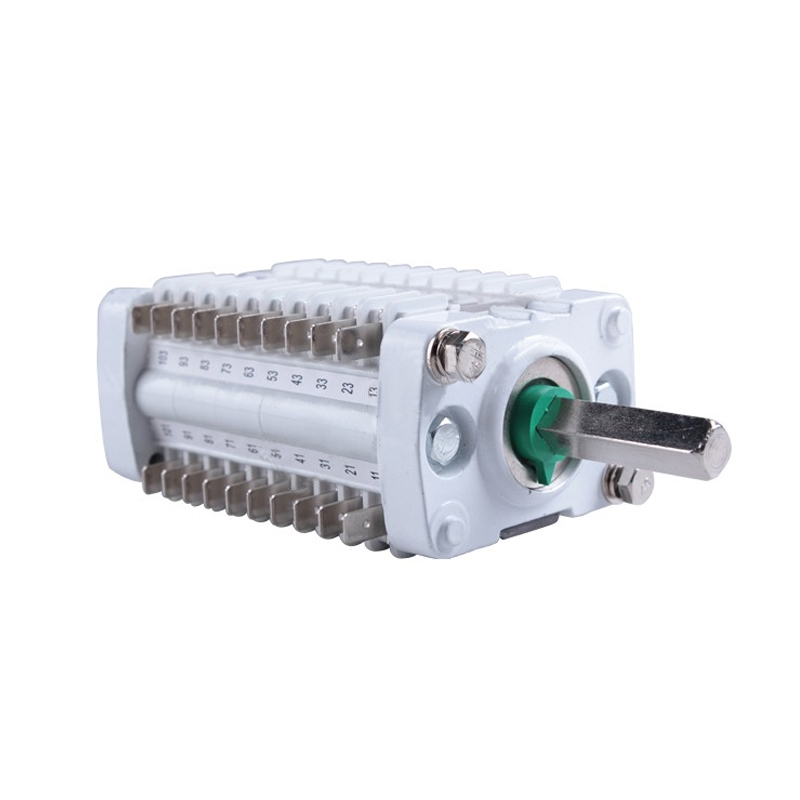

F10-20 Auxiliary Switch For HV switchgears

Short Description:

Certification: ISO

Whether the smart: NO

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: F10-20

Max. Current: 15A

Max. Voltage: 660V

Type: F10 series

Product Detail

Product Tags

F10-20 MV circuit breaker auxiliary switch

Item No: F10-20

Order instruction

1.Confirm the contacts number, normally open &normally close, that is F10-

2.Any special requests

Main Application

This series applies to the HV operating mechanisms switching on, switching off, interlock, and controlling of signal circuit. It also applies to HV switchgears, and can be used as transfer switch or cubicle switch.

Working Conditions

· Ambient Temperature (-40oC≤ t ≤40oC)

· Height above Sea Level (h≤3000m)

· Monthly mean relative air humidity ≤ 90%, daily mean relative air humidity ≤ 95%

· Oscillatory acceleration 15m/s2

· Situation of no sharp pounding, no explosion risk, no inductive dust, no air destroying, insulators or corroding metal, and so on.

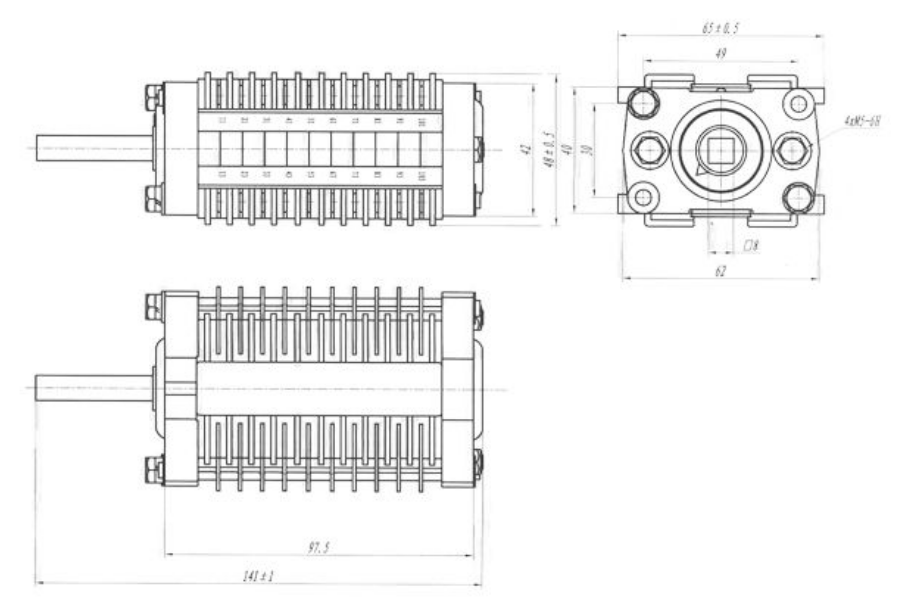

 F10-20 Auxiliary Switch For HV  switchgears 001
