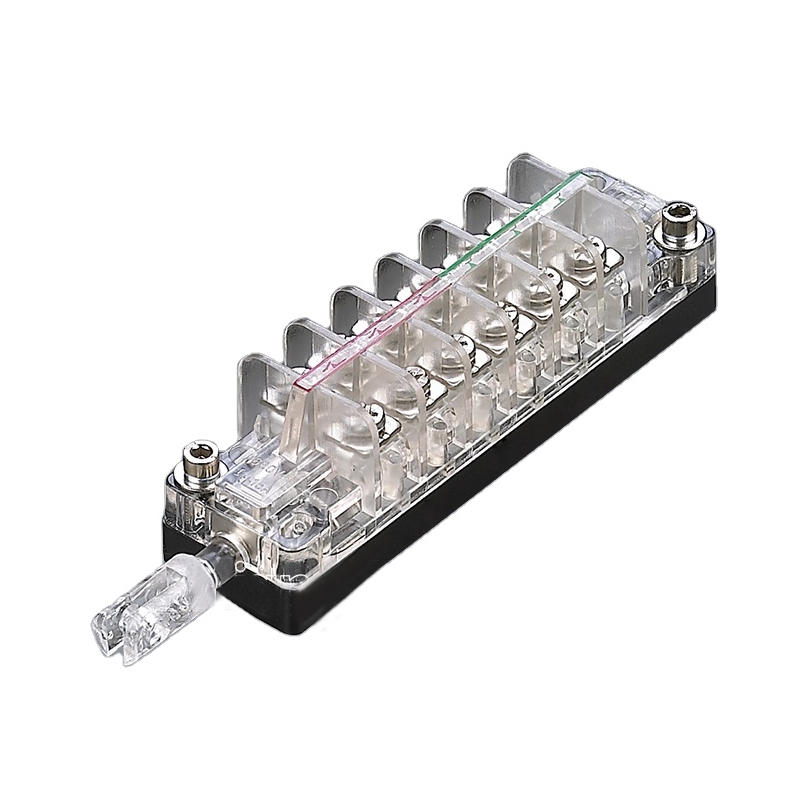

FK10-I Auxiliary Contact 220V For Switchgear

Short Description:

Certification: CE

Whether the smart: NO

Place of Origin: Zhejiang, China

Brand Name: Timetric

Model Number: FK10-I-33

Max. Current: 10A/220V

Max. Voltage: 660V/2A

Product name: FK10 auxiliary contact

Contact type: 3NO3NC

Struction type:: I type

Product Detail

Product Tags

FK10-I Auxiliary Contact 220V for Switchgear

Item No: FK10-1

FK1 0 Series Auxiliary Switch


FK10 Series is applied to AC/DC vacuum contactors, solenoid switches, contactors, breakers and so on. Since its contact is in quarantine, it could be used in the environment of dust.

Types of meaning


fk 10-□ □ □ □ □□



Auxiliary switch

Design number

Structure sign:

I: with connecting lever

II: without connecting lever

III: with pull rode lever

Pairs of NO contacts

Pairs of NC contacts


A pair of delay contacts

Material code


1. Rated voltage: AC 660V

2. Rated frequency: 50Hz

3. Rated current: 15A

Main application:

This series applies to the HV operating mechanisms switching on, switching off, interlock, and controlling of signal circuit. It also applies to HV switchgears, and can be used as transfer switch or cubicle switch.

Technical References

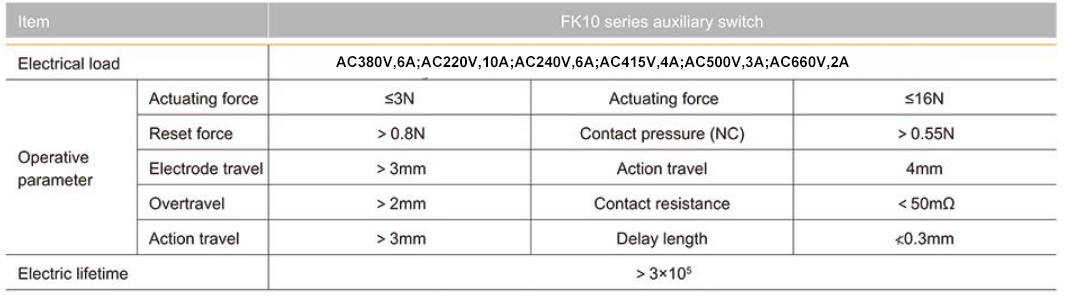

FK10-I Auxiliary Contact 220V For Switchgear 001

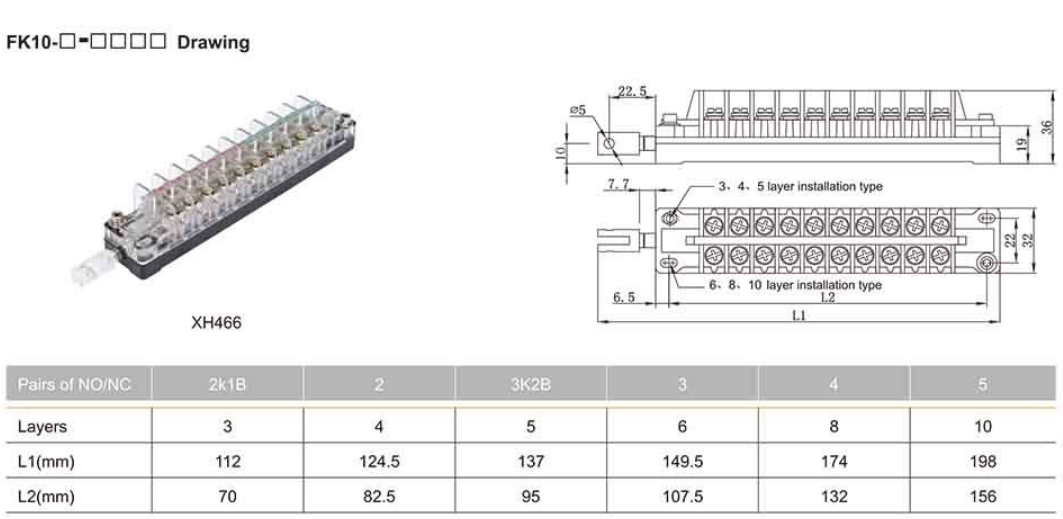

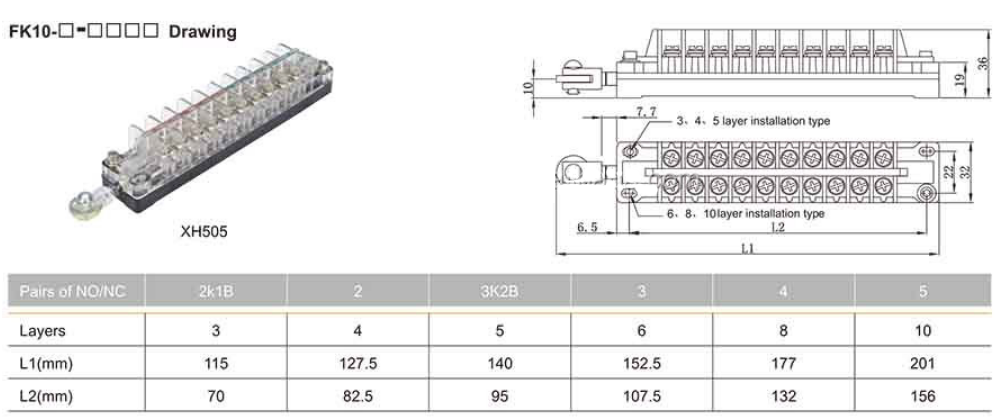

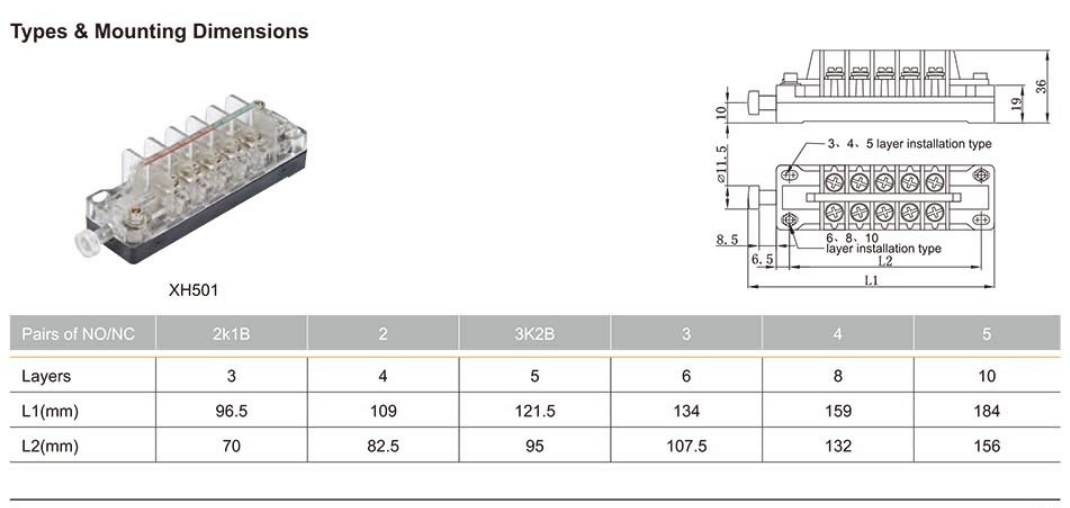

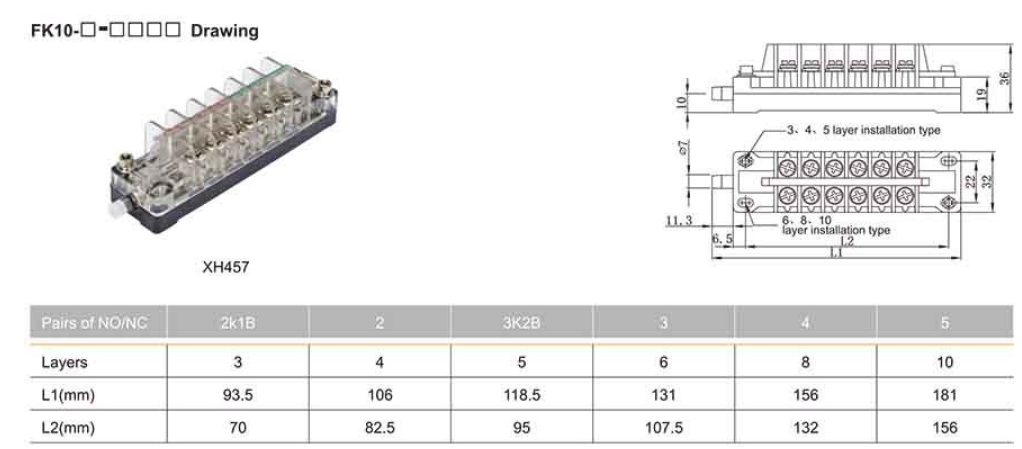

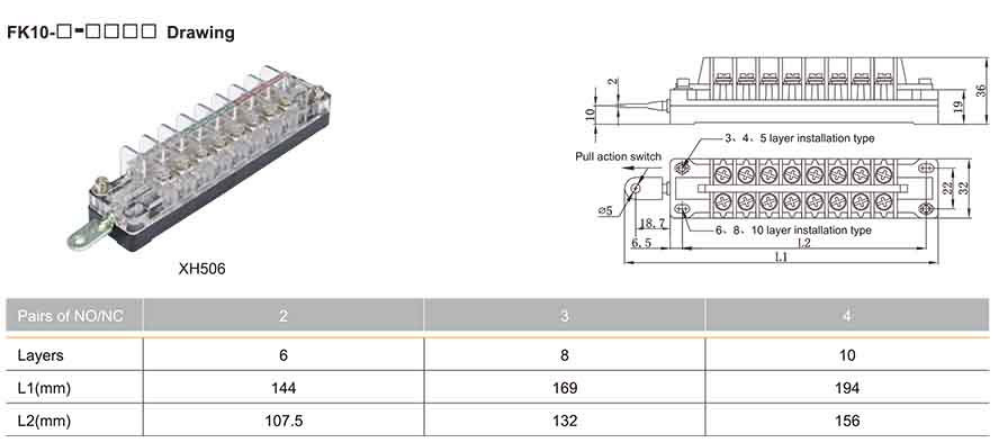

FK10-I Auxiliary Contact 220V For Switchgear 002 FK10-I Auxiliary Contact 220V For Switchgear 003 FK10-I Auxiliary Contact 220V For Switchgear 004 FK10-I Auxiliary Contact 220V For Switchgear 005 FK10-I Auxiliary Contact 220V For Switchgear 006
