Epoxy Resin Insulator Sensor For Switchgear 12KV

Short Description:

Place of Origin: Zhejiang, China

Brand Name: Timetric

Type: Insulator

Material: Epoxy resin

Application: High Voltage

Rated Voltage: 12kv

Tensile Strength: excellent

Product name: insulator/sensor

Colour: Red

Usage: Insulation Protection

Dimension: 105*140

Product Detail

Product Tags

Epoxy Resin Insulator Sensor For Switchgear 12KV


1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supply the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad,

About us:

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

We will give you best quality and price!

Epoxy Resin 12KV Insulator sensor For switchgear

Insulator: It is a special insulation control, also known as supporting insulators, which acts as a support wire and prevents current from returning to the ground, increasing the creepage distance.

Sensor:The bottom two screws act as conductors to induce current and transmit information to the live display.

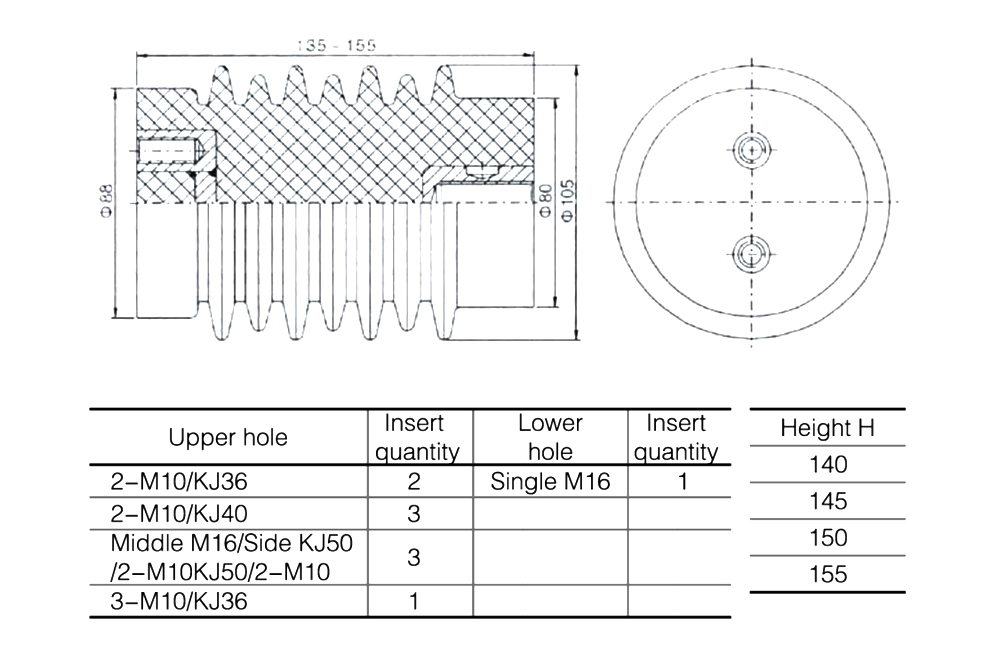

Epoxy Resin Insulator Sensor For Switchgear LYC113 12KV

Epoxy Resin Insulator Sensor For Switchgear 12KV


Size: φ105*135~155(or as per customer’s requirement)
Brand: Timetric
Type: Insulator/Sensor
Application: High Voltage / Switchgear
Color: brown, red
Product Certification: CE and ISO 9001:2000
Rated voltage: 12kV
MOQ: 50pcs
Packing: As per customer’s requirement
Loading port: Shanghai Port / Ningbo Port
Payment terms: L/C,T/T, Western Union
Delivery time: within 20 days, depends on order quantity

1. OEM are welcome

2. High quality & timely delivery

3. Reasonable price

4. In a variety of designs and Specification

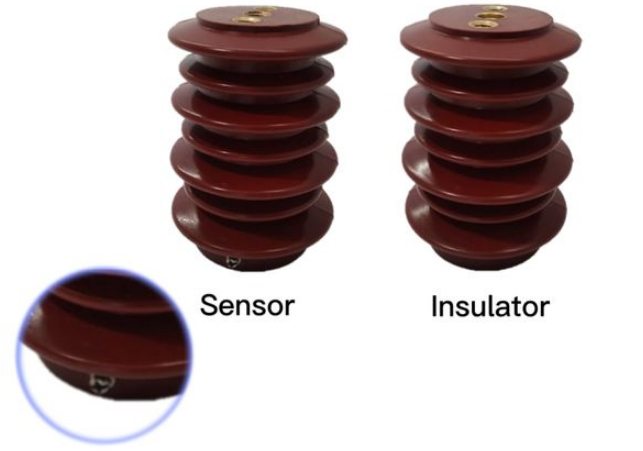

The difference between insulator and sensor

The difference between insulator and sensor
